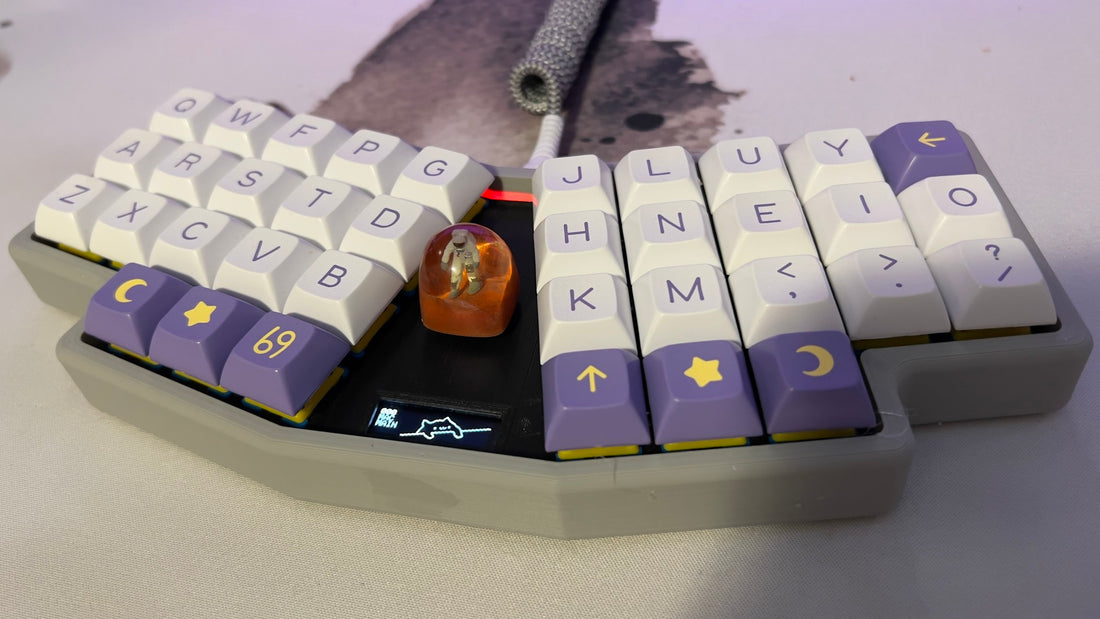

The Scotto36 is a 36-key split monoblock ergonomic ortholinear keyboard with 15° of angle on each half. For the first time ever I decided to add an 0.91” OLED display so I could have Bongocat right on my keyboard as I type. In the middle of the board is a “mod“ where I took a stem of a switch so I could display my artisans. I went with stock JWK Lil’ Tyke switches as I had tons of them from a prior build. Keycaps are Drop DSA Astrolokeys.


Getting One

If you’re interested in getting one assembled, contact me and we can discuss the components and other details for a commissioned build. However, the files are available for free here if you want to build one yourself.

In addition to the 3D printed caseheat shink tubing, wire, and copper, you'll also need tools along with the following components:



Scotto36 annotated matrix pins.

When looking at the back of the board, the columns (blue) go to the following pins on the controller from right to left: 4, 5, 6, 7, 8, 9, A3, A2, A1, A0

Then the rows (red) go from top to bottom: 15, 14, 16, 10

In addition to the matrix, you will also need to wire up the OLED display.

  • VCC: VCC
  • GND: Any GND pin
  • SDA: Pin 2
  • SCK: Pin 3

Keep in mind, you can connect anywhere on the column or row to the controller, it doesn't need to just be at the end.



    You can find the firmware files on the qmk_firmware repository or you can compile them online using the QMK Configurator. However, QMK is often slow at getting changes merged and because of that you can find the most up-to-date firmware on the ScottoKeebs Github repository. Also available are the pre-compiled firmware files that you can simply download (right click, save as) and flash using QMK Toolbox

    default.hex - Default QMK keymap in QWERTY.
    vial.hex - Default QMK keymap in QWERTY with Vial configurator support.
    scotto.hex - My personal QMK keymap in Colemak.

    After flashing vial.hex, you should load the vial.vil configuration file within the Vial application to ensure everything functions as expected.



    Scotto36 wiring.Scotto36 matrix.Scotto36 switches.
