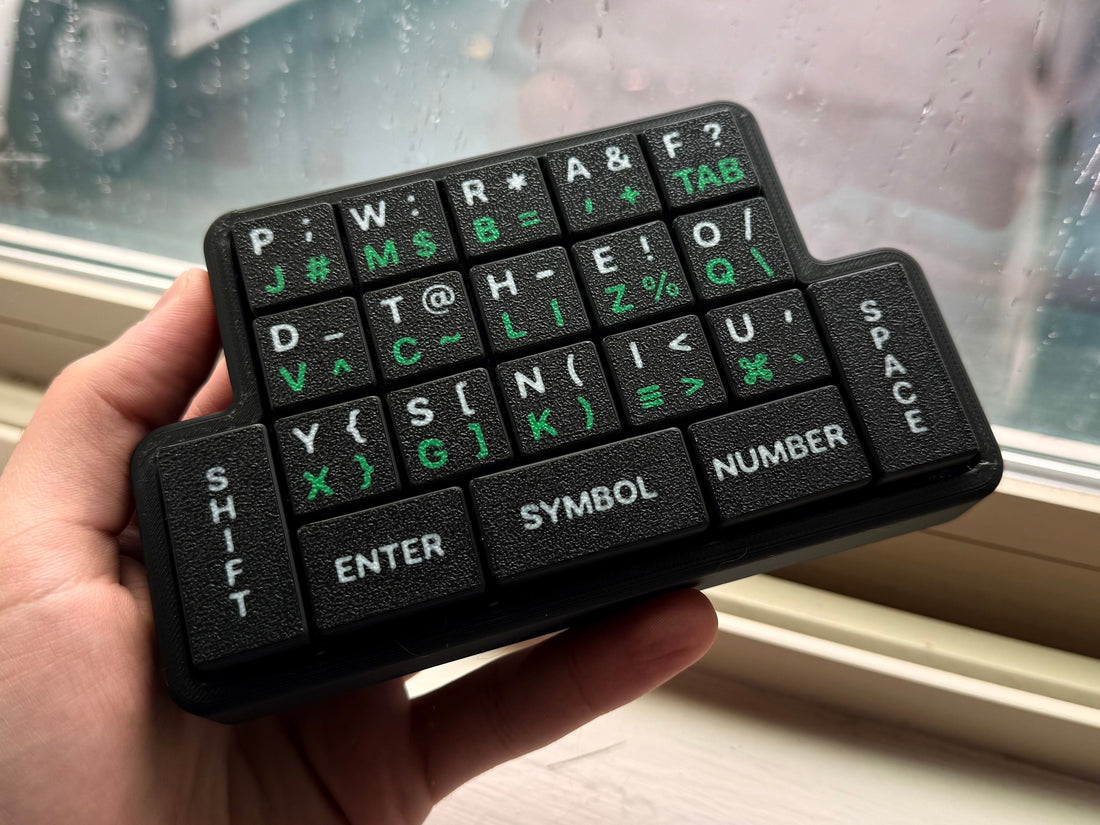

The ScottoFrog (PCB Edition) is a 20-key single handed keyboard or macropad depending on which firmware you choose to run. It's powered by a single RP2040 Zero and supports Vial for GUI customization. My version of the board uses Kailh Pale Blue clicky switches along with my custom ScottoFrog keycaps. The keyboard works by using lots of combos, for example, pressing the top right key will give you F by default but if you press space at the same time, you'll get tab. It's a bit tricky at first but just like anything, the more you do it, the better you get.
Getting One
If you’re interested in getting one assembled, contact me and we can discuss the components and other details for a commissioned build. If you want to build it yourself, you'll need the following:
- 1 ScottoFrog PCB Kit
- 1 3D printed case
- 1 RP2040 Zero
- 3 2u screw-in stabilizers
- 20 MX switches
- 1 ScottoFrog Keycaps Set (optional)
- 15 1u keycaps
- 3 2u keycaps
- 2 1.25u keycaps
You can find the case files here.
Firmware
You can find the most up-to-date firmware on the ScottoKeebs Github repository. Also available are the pre-compiled firmware files that you can simply download (right click, save as) and flash by dragging and dropping to the controller.
default.uf2 - Default QMK keymap.
vial.uf2 - Default QMK keymap with Vial configurator support.
right.uf2 - Right-handed QMK keymap.
default.uf2 - Left-handed QMK keymap.
Videos
Coming soon...

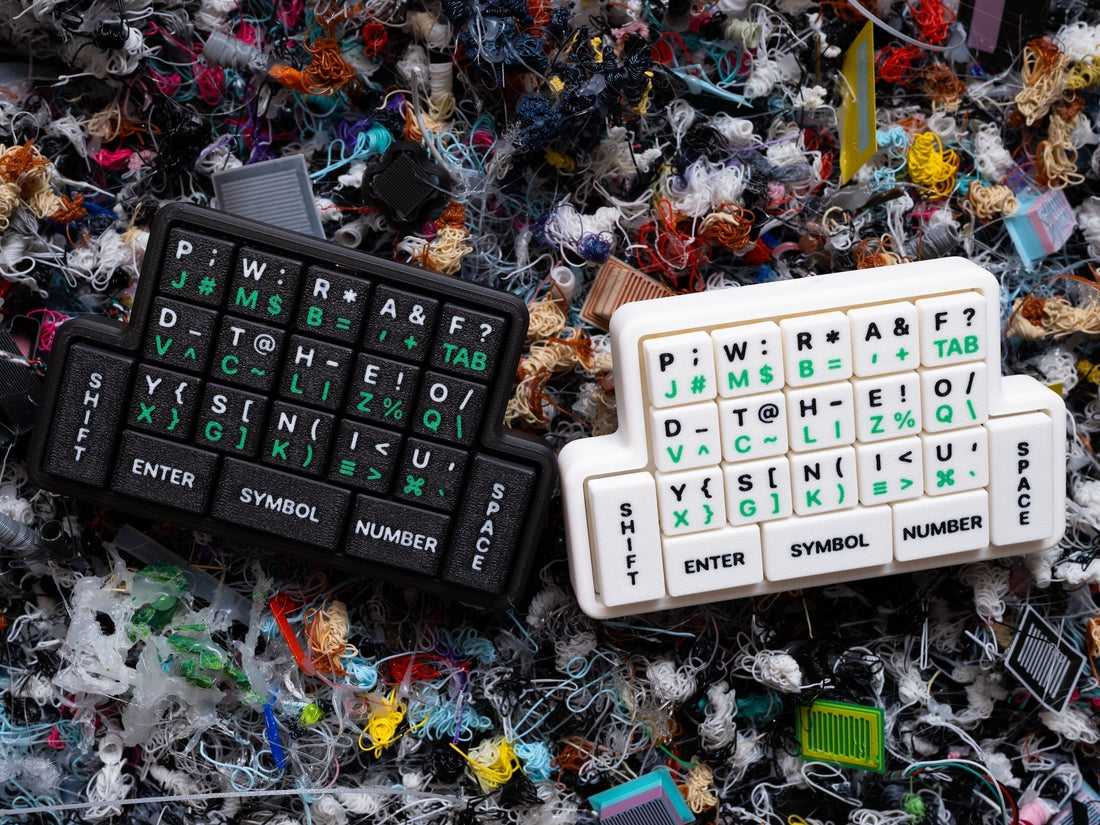

Photos
