Scotto20 Handwired Macropad

Scotto20 Handwired Macropad

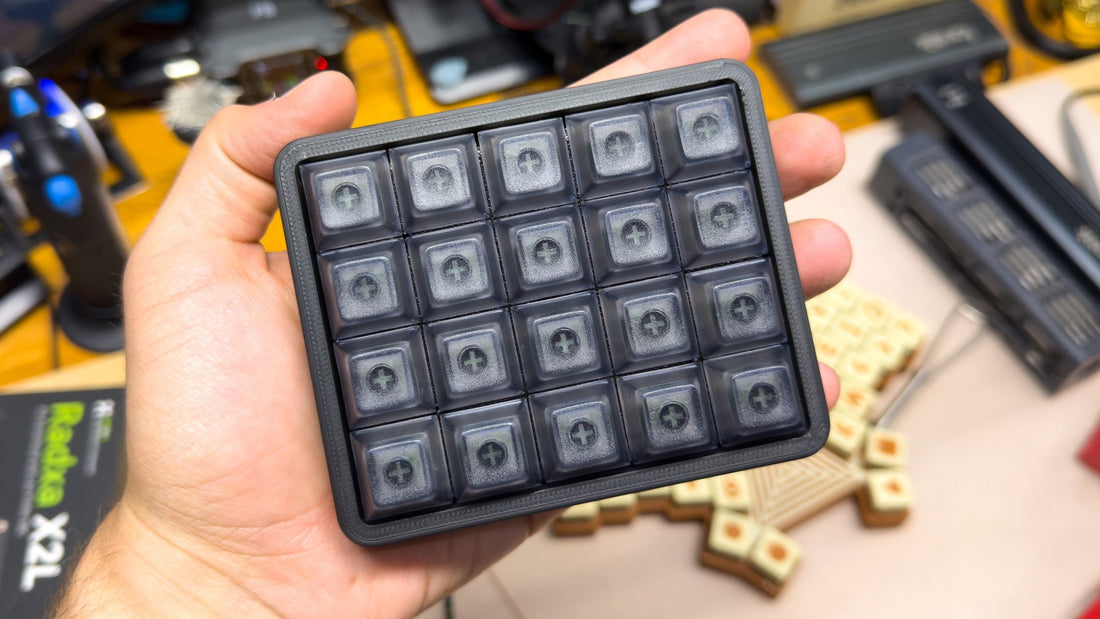

The Scotto20 is a 20-key macropad. It uses cheap Aliexpress matcha linear switches and an RP2040 Pro Micro controller. One neat thing about this build is that I used a bunch of modeling clay inside to give it more weight and improve the sound. I use it for gaming and it's somewhat a more compact version of my ScottoFrog which I've used to game for the past few years.



Getting One

If you’re interested in getting one assembled, contact me and we can discuss the components and other details for a commissioned build. However, the files are available for free here if you want to build one yourself.

In addition to the 3D printed case, heat shink tubing, wire, and copper, you'll also need tools along with the following components:


Wiring

Scotto20 annotated matrix.

When looking at the back of the board, the columns (blue) go to the following pins on the controller from right to left: GP6, GP7, GP8, GP9

Then the rows (red) go from top to bottom: GP22, GP20, GP23, GP21

Keep in mind, you can connect anywhere on the column or row to the controller, it doesn't need to just be at the end.



Firmware

You can find the firmware files on the qmk_firmware repository or you can compile them online using the QMK Configurator. However, QMK is often slow at getting changes merged and because of that you can find the most up-to-date firmware on the ScottoKeebs Github repository. Also available are the pre-compiled firmware files that are ready to flash:

default.uf2 - Default QMK keymap
vial.uf2 - Default QMK keymap with Vial configurator support.



Photos

Scotto20 switches
Scotto20 clay filling.
Scotto20 resin on controller mounting.
