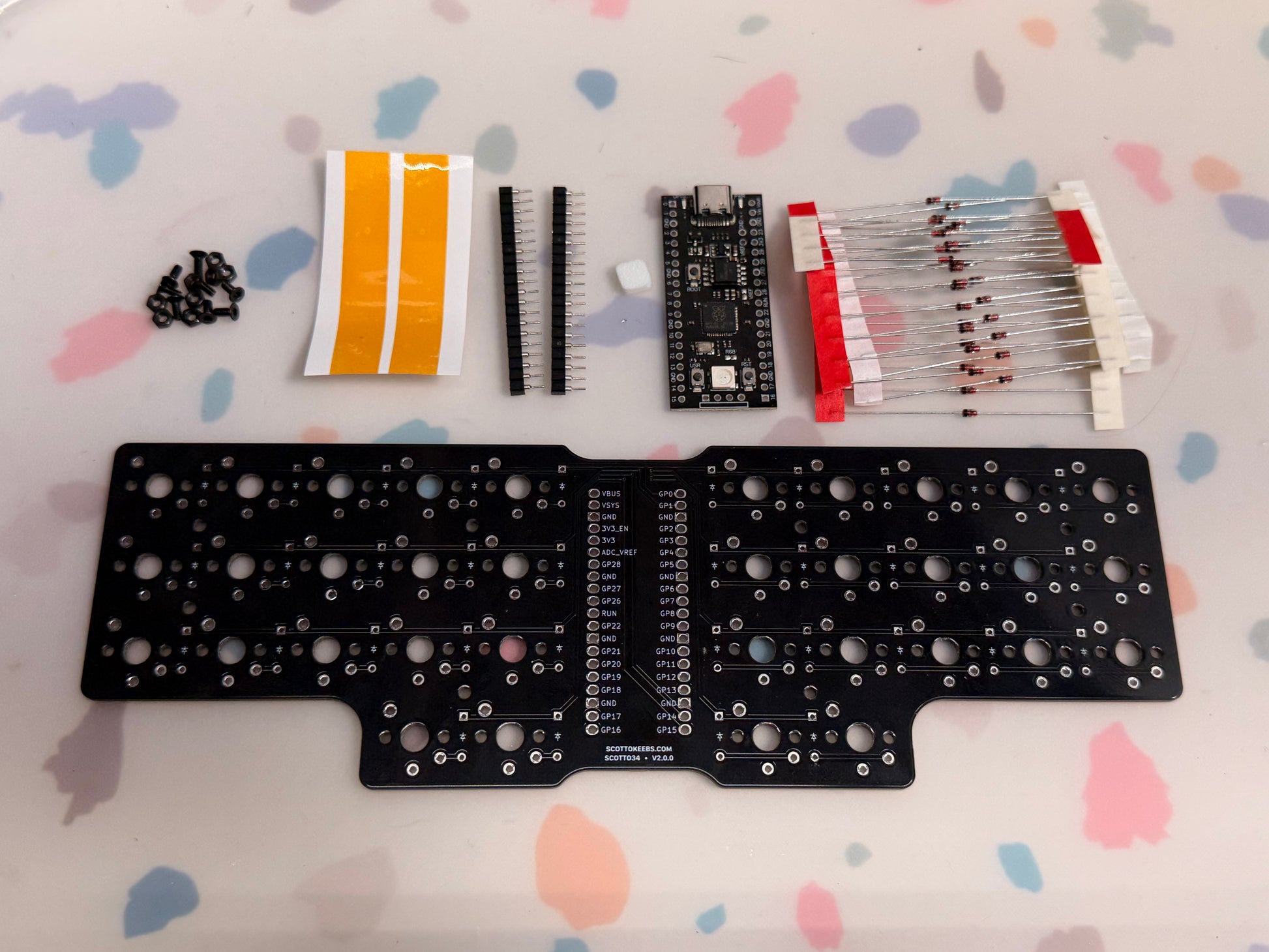

Included with the PCB Kit:

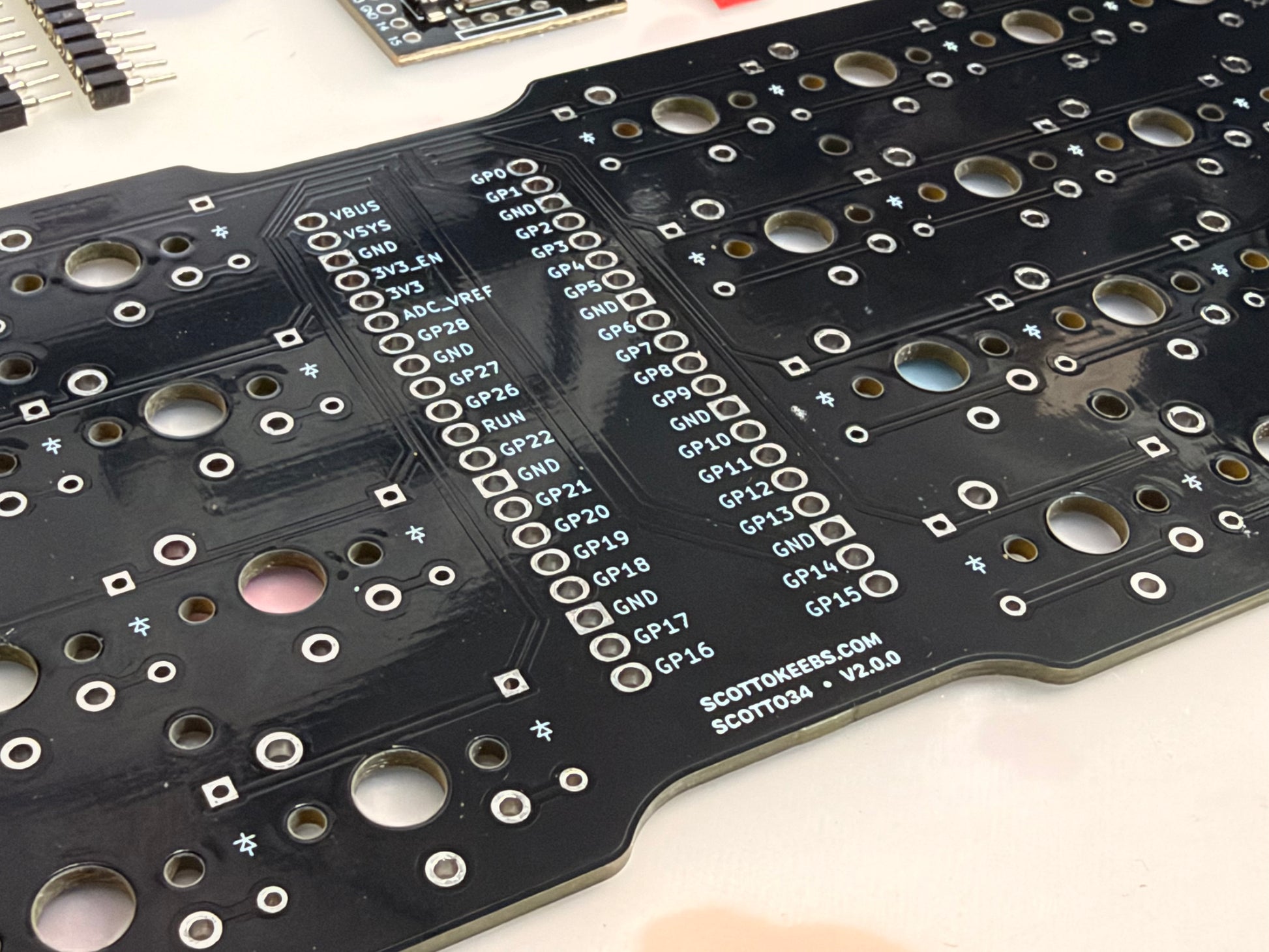

• 1 - Scotto34 PCB (V2.0.0)

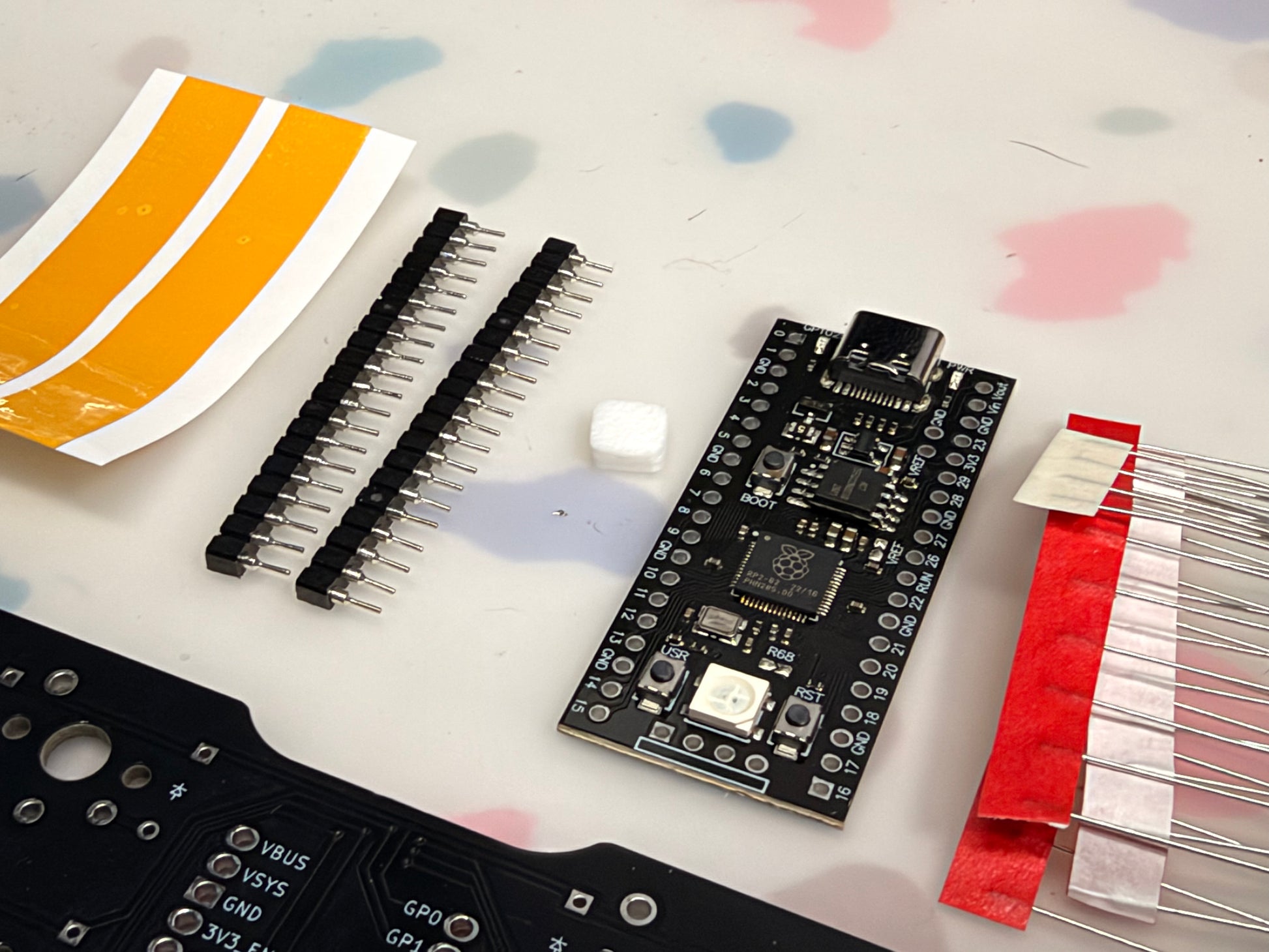

• 1 - RP2040 Pi Pico (Black)
• 1 - MCU RGB diffuser
• 2 - 1x10 Socket headers
• 2 - Kapton tape for MCU socketing

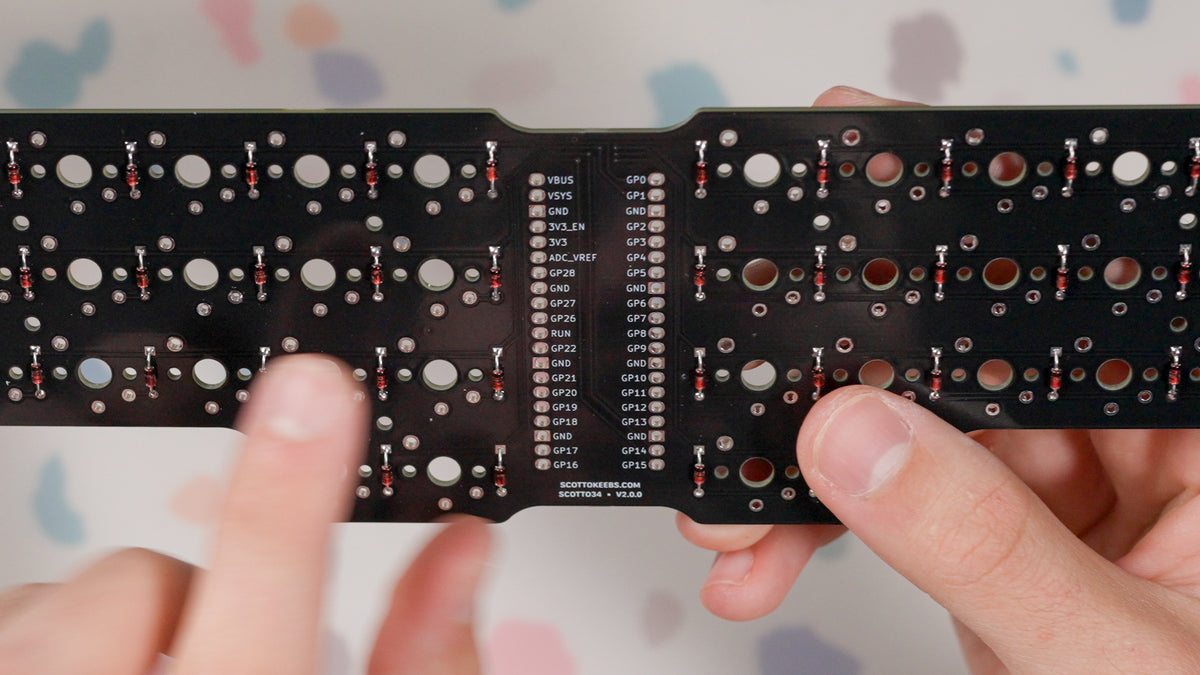

• 34 - 1N4148 DO-35 diodes
• 8 - M2 nuts
• 8 - M2x5mm countersunk screws

If purchasing the case, it includes:

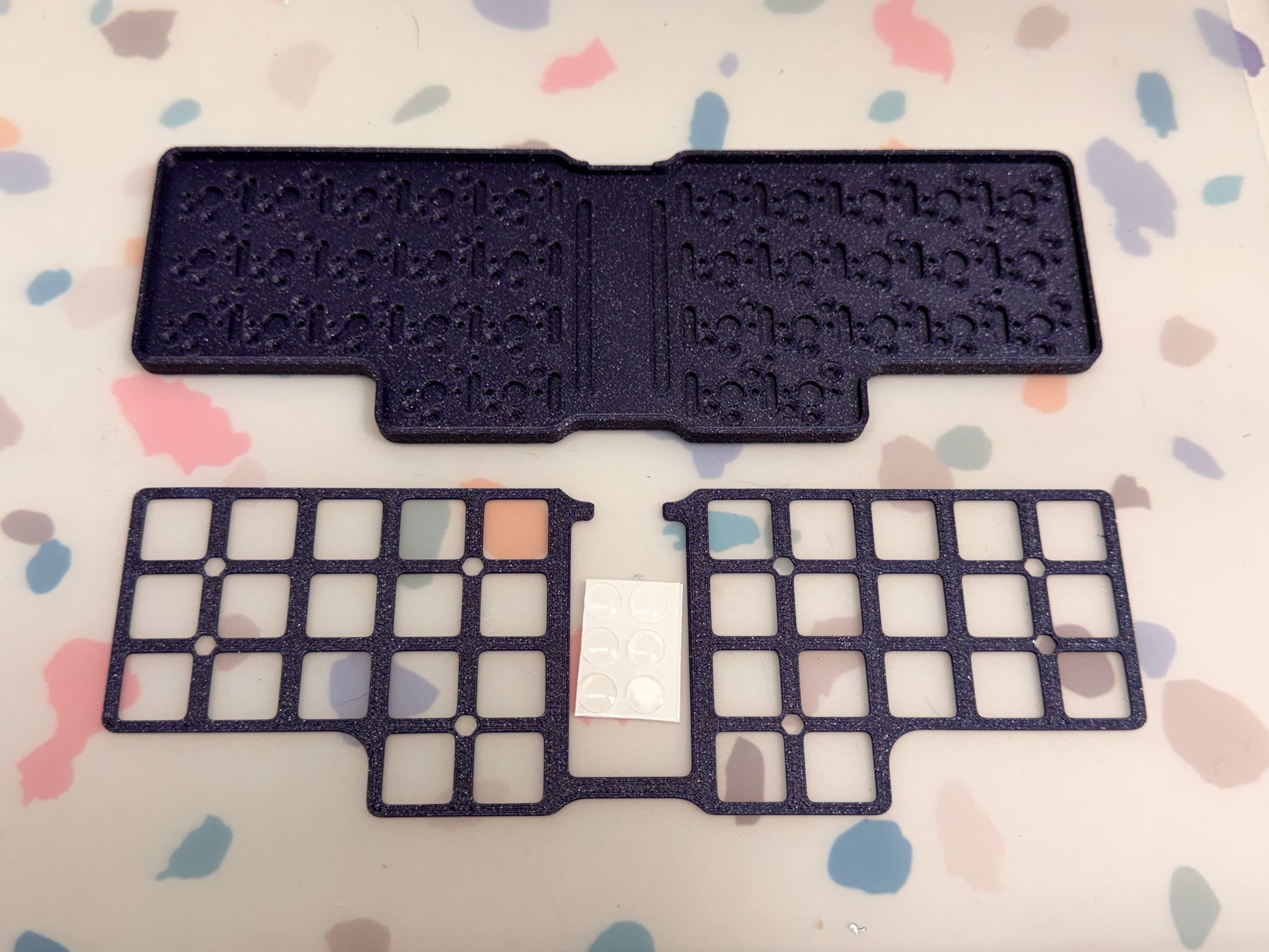

• 1 - 3D printed case
• 1 - 3D printed plate
• 6 - Rubber feet

If purchasing the 3D printed blank keycaps, they include:

• 2 - 1u homing
• 4 - 1u convex
• 28 - 1u concave

You will need the following to complete the build:

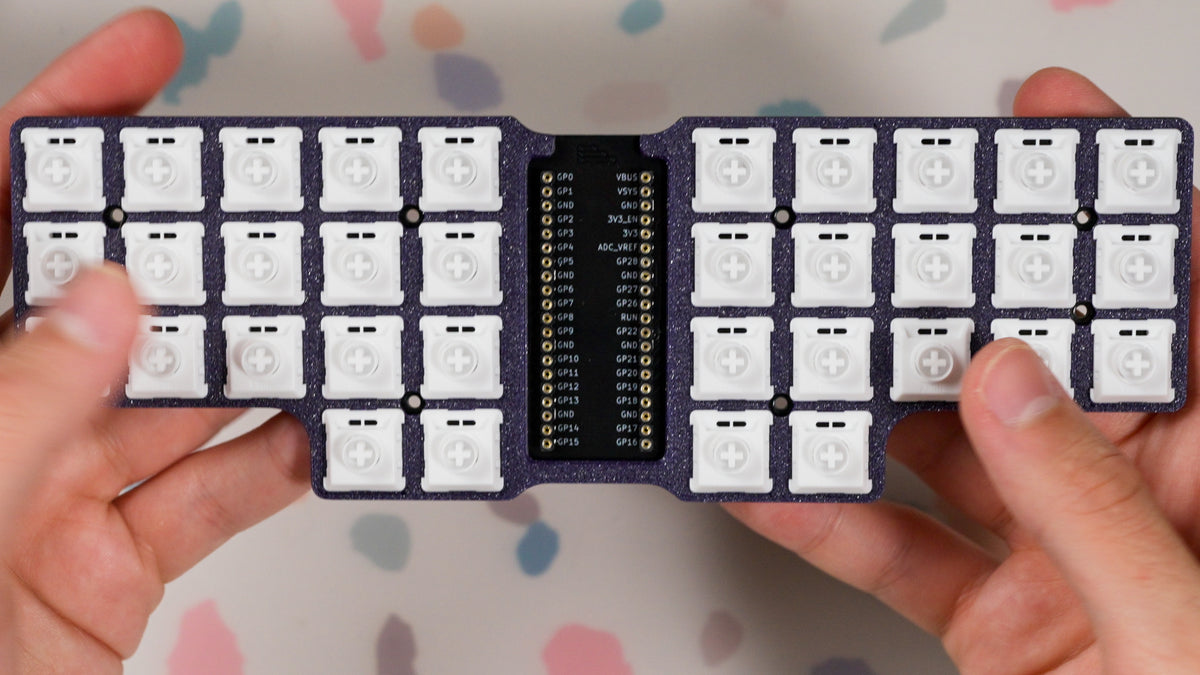

• 34 - Choc V1/V2 switches
• 34 - 1u 18x17mm keycaps (if not purchasing)
• 1 - 3D printed case (if not purchasing)

Files

1. vial.uf2 - QWERTY keymap with Vial support.
2. scotto.uf2 - My personal Colemak keymap.
3. Code - Source code including Vial keymap.
4. Models - Case and design files to 3D print yourself.

Specifications

• Length: ~217mm
• Depth: ~74mm

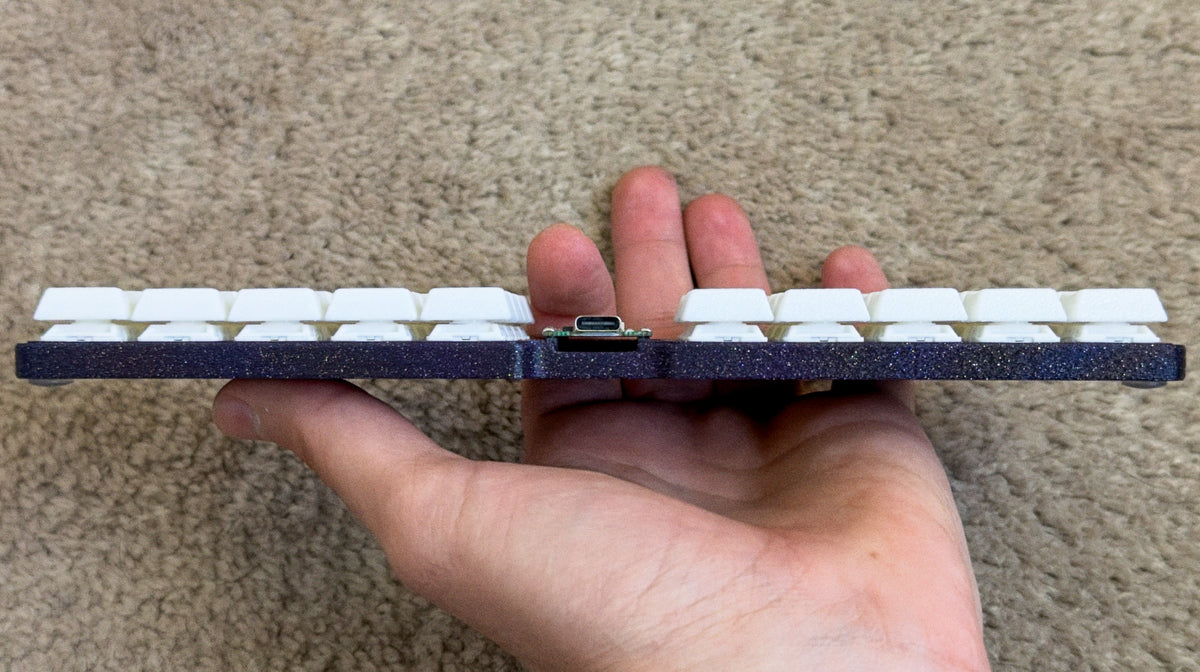

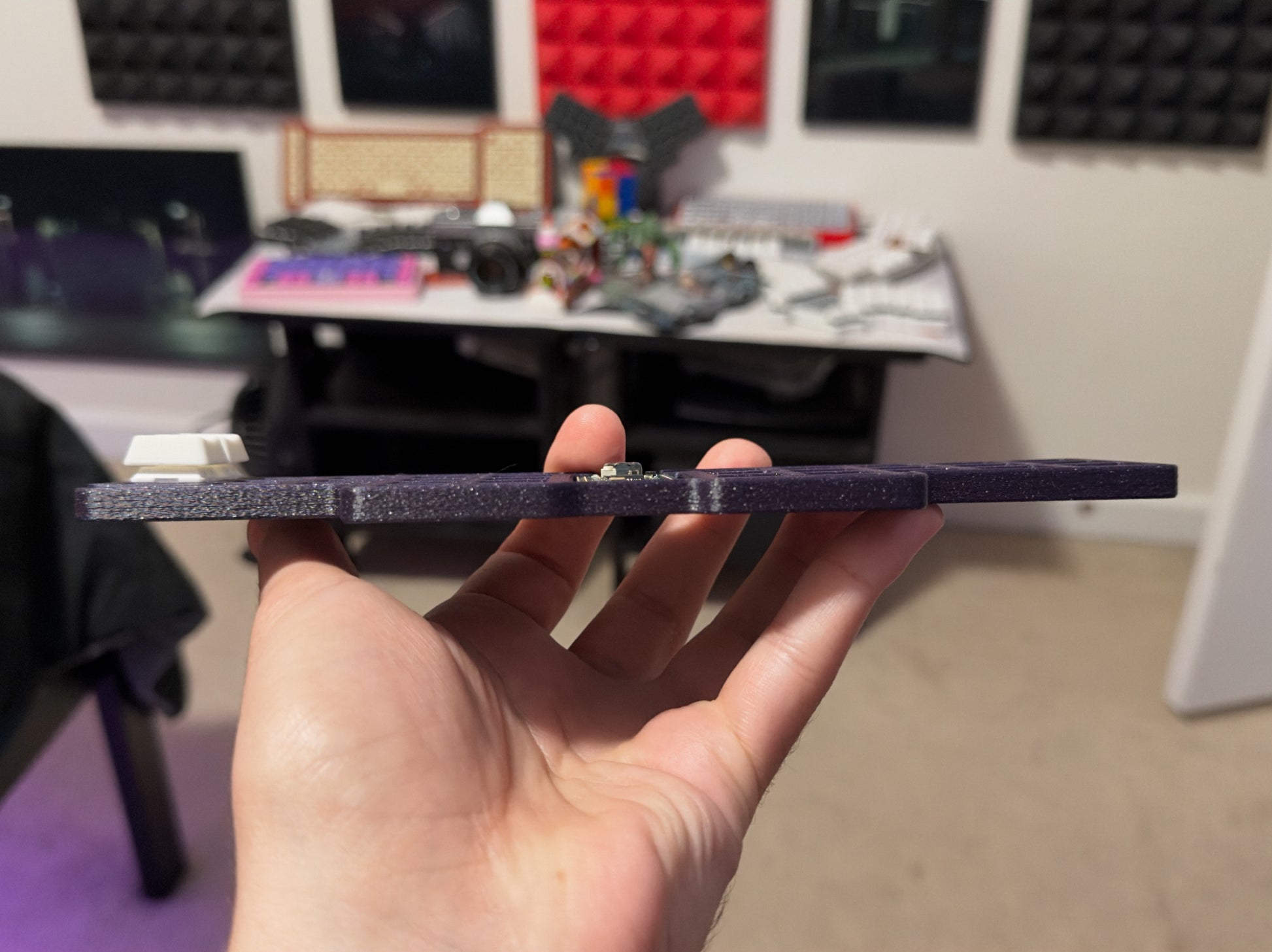

• Height: ~15mm (with ScottoCaps)
• Spacing: 18x17mm Choc V1/V2

Compatibility

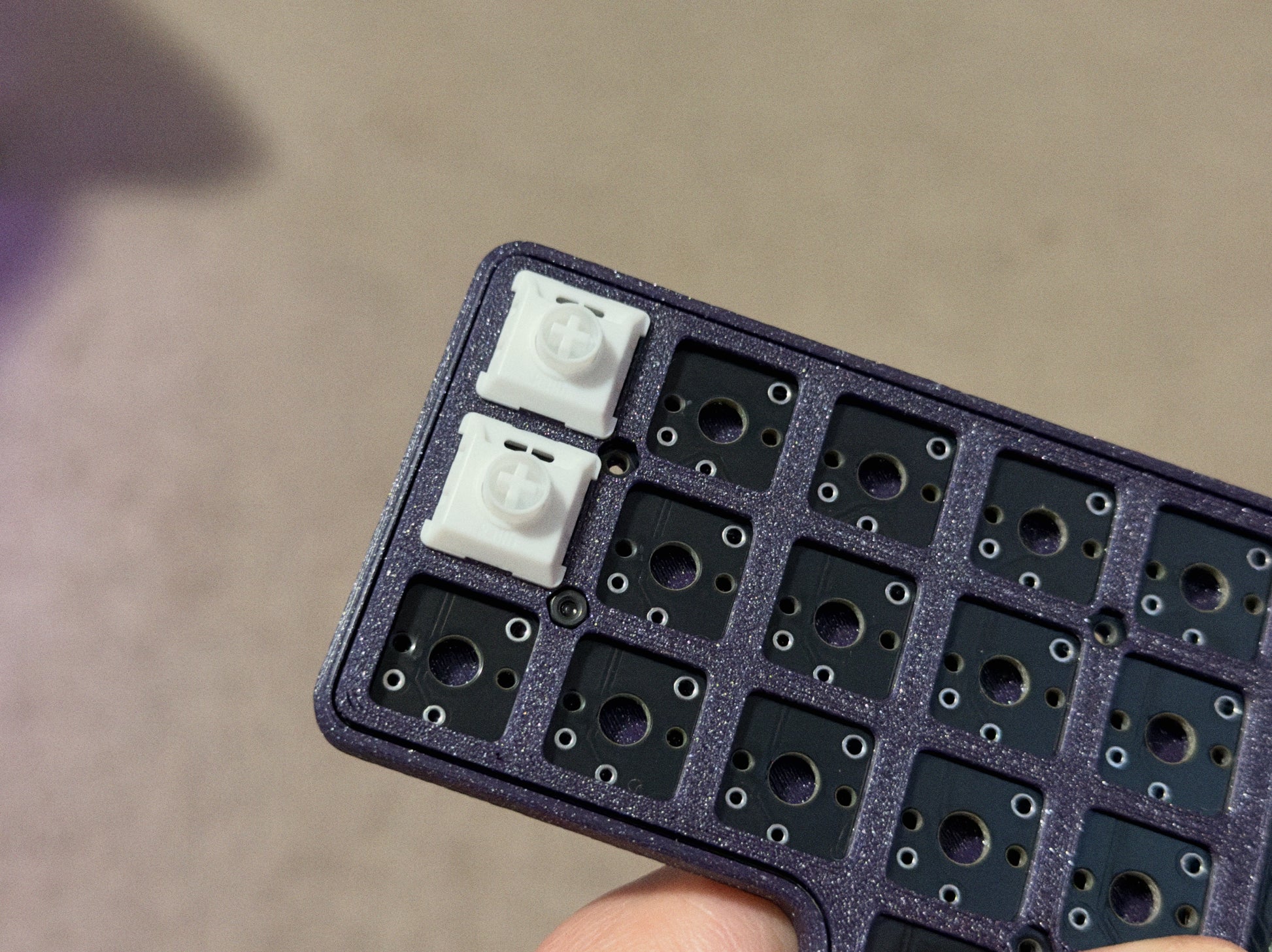

The Scotto34 supports both Choc V1 and V2, but uses Choc V1 spacing of 18×17mm. This means most Choc V2 keycap sets are not compatible. We offer custom 3D-printed Choc V2 keycaps with 18×17mm spacing.

Customization

If you want something in a different color or keycaps with legends, please contact us.
