Scotto44 Keyboard Case

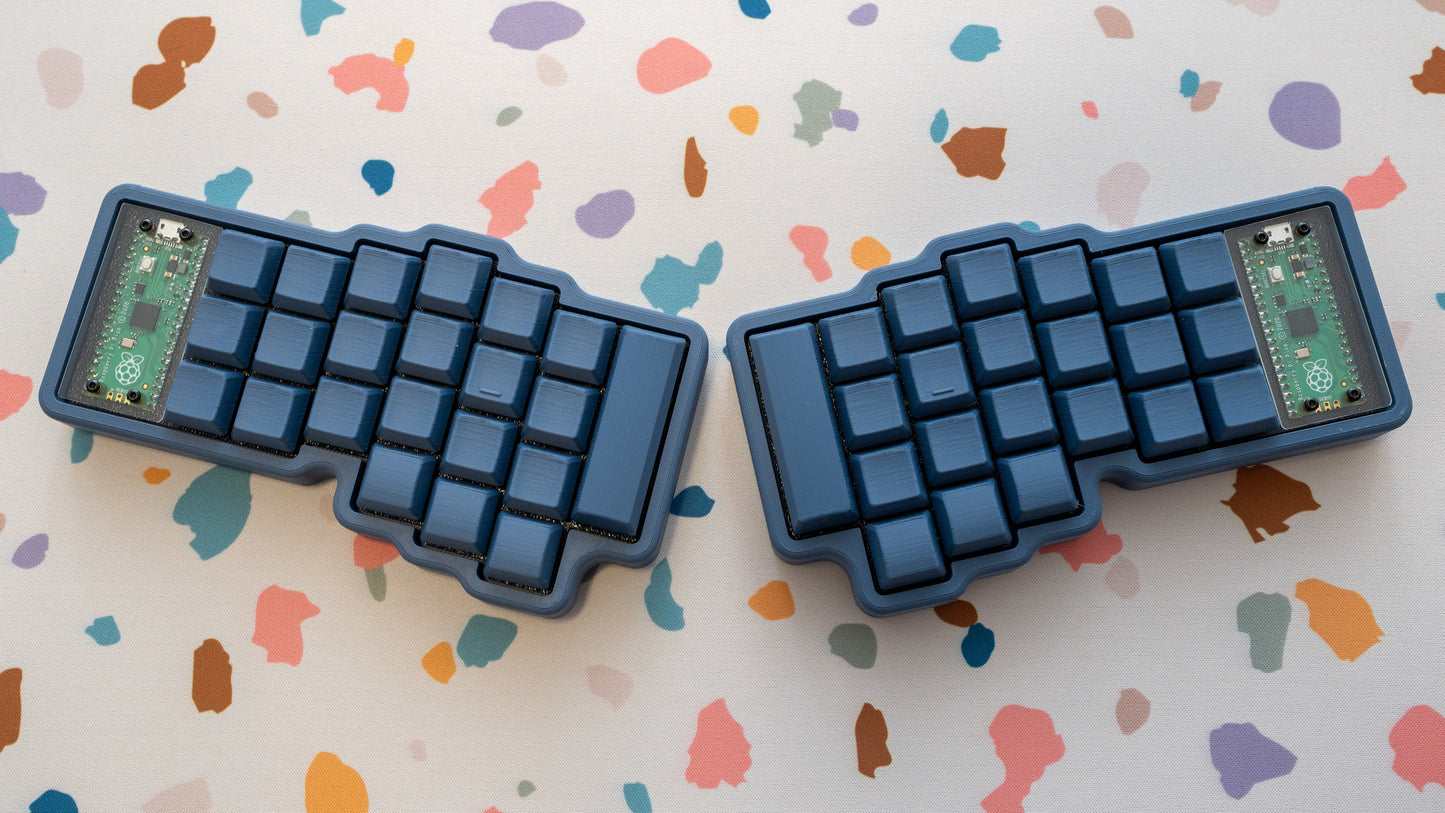

The Scotto44 is a 3x5 (38-keys) or 3x6 (44-keys) split column-staggered keyboard that uses a USB-C cable for the interconnect.

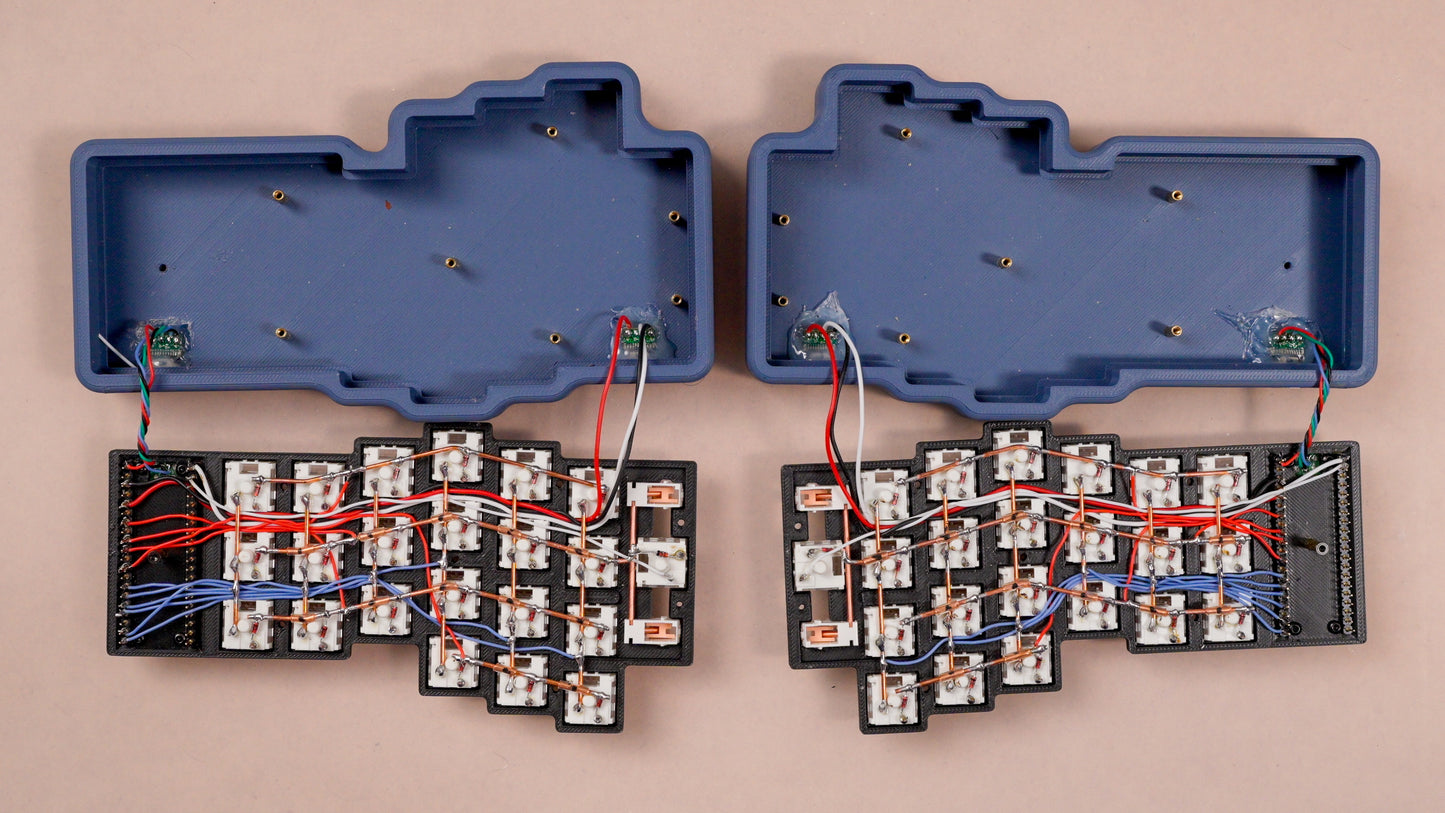

This listing is for a 3D printed case, plate, and plexiglass cutting template so you can build it yourself. In order to complete the handwired build, you will also need the following:

• 2 Raspberry Pi Pico

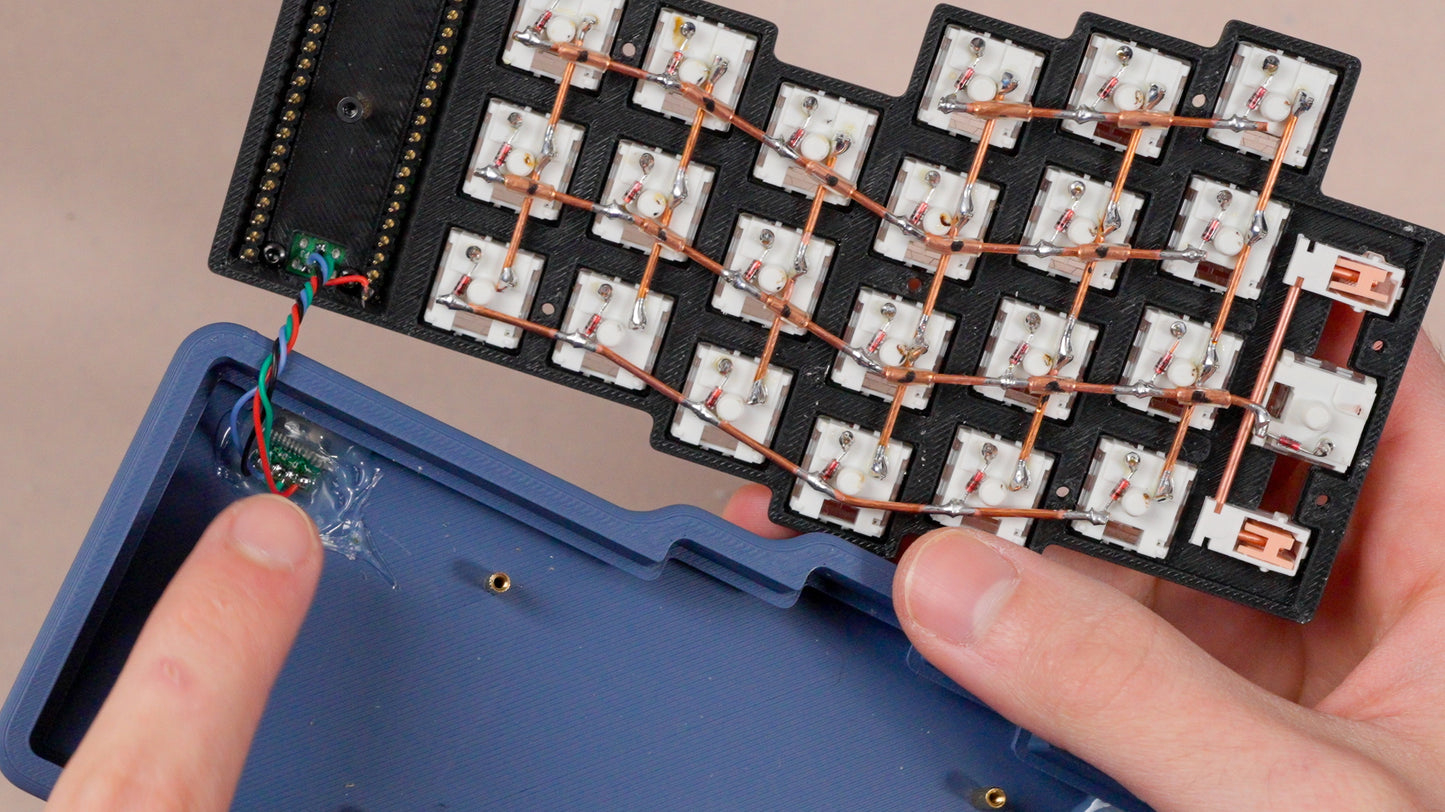

• 4 USB-C breakout boards
• 1 USB-C to USB-C cable
• 1 Sheet of 1mm plexiglass

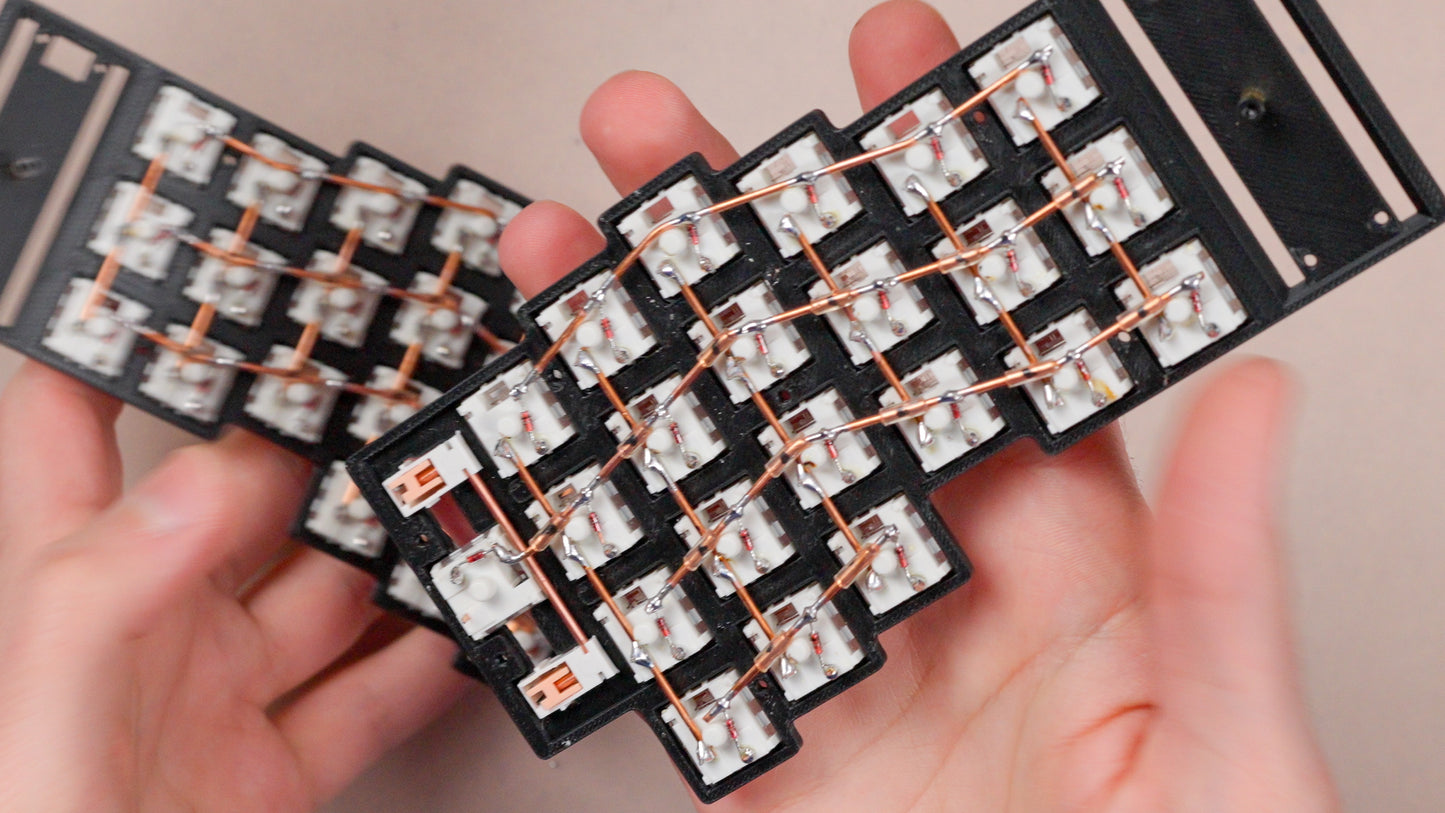

• 44 1N4148 diodes
• 40 M2x5mm screws
• 8 M2x4mm screws
• 16 M2x8mm standoffs
• 8 M2x4mm standoffs

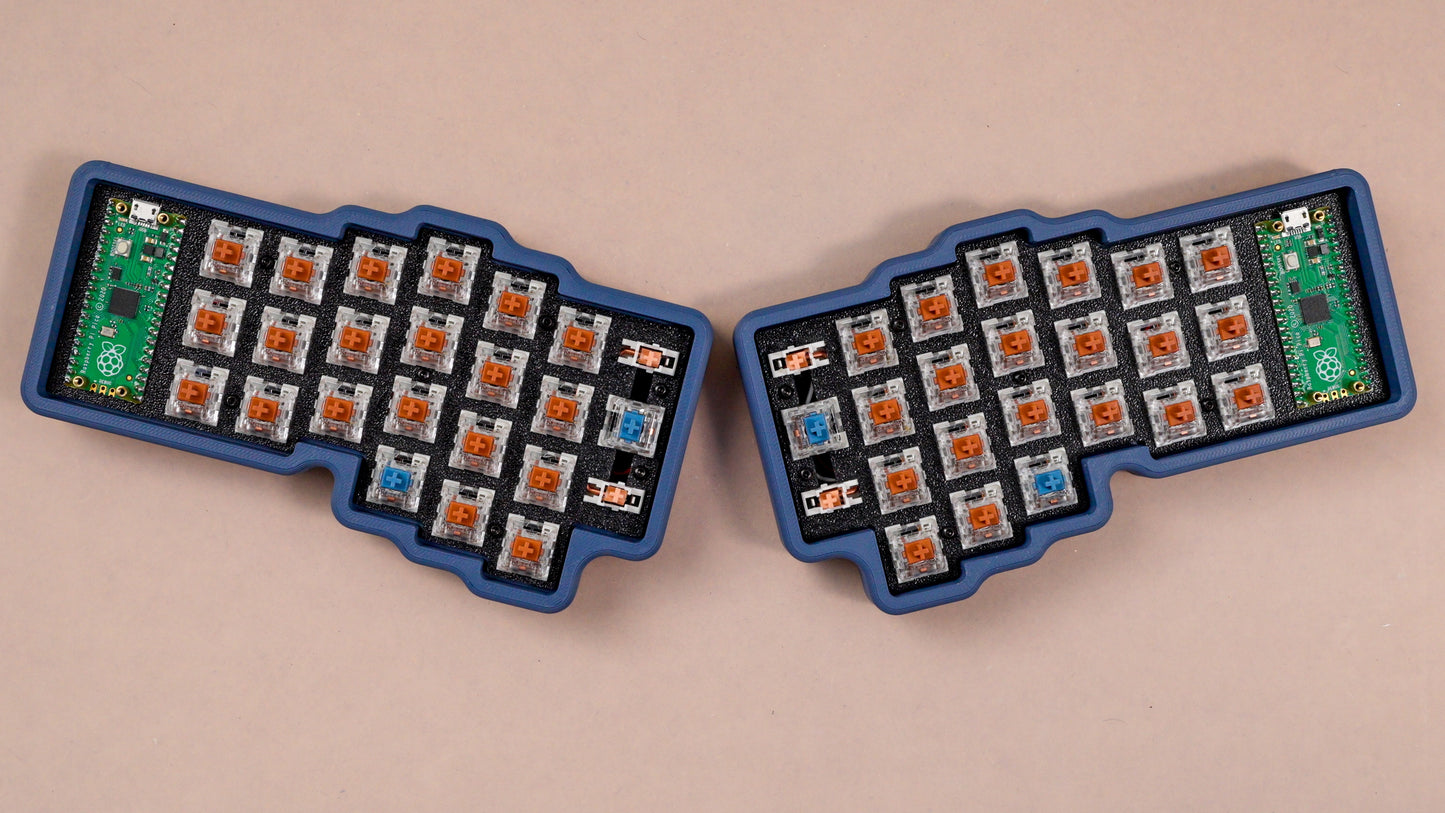

• 44 MX switches
• 2 3u plate mount stabilizer
• 42 1u keycaps
• 2 3u keycaps

You can read more about the Scotto44 here.
