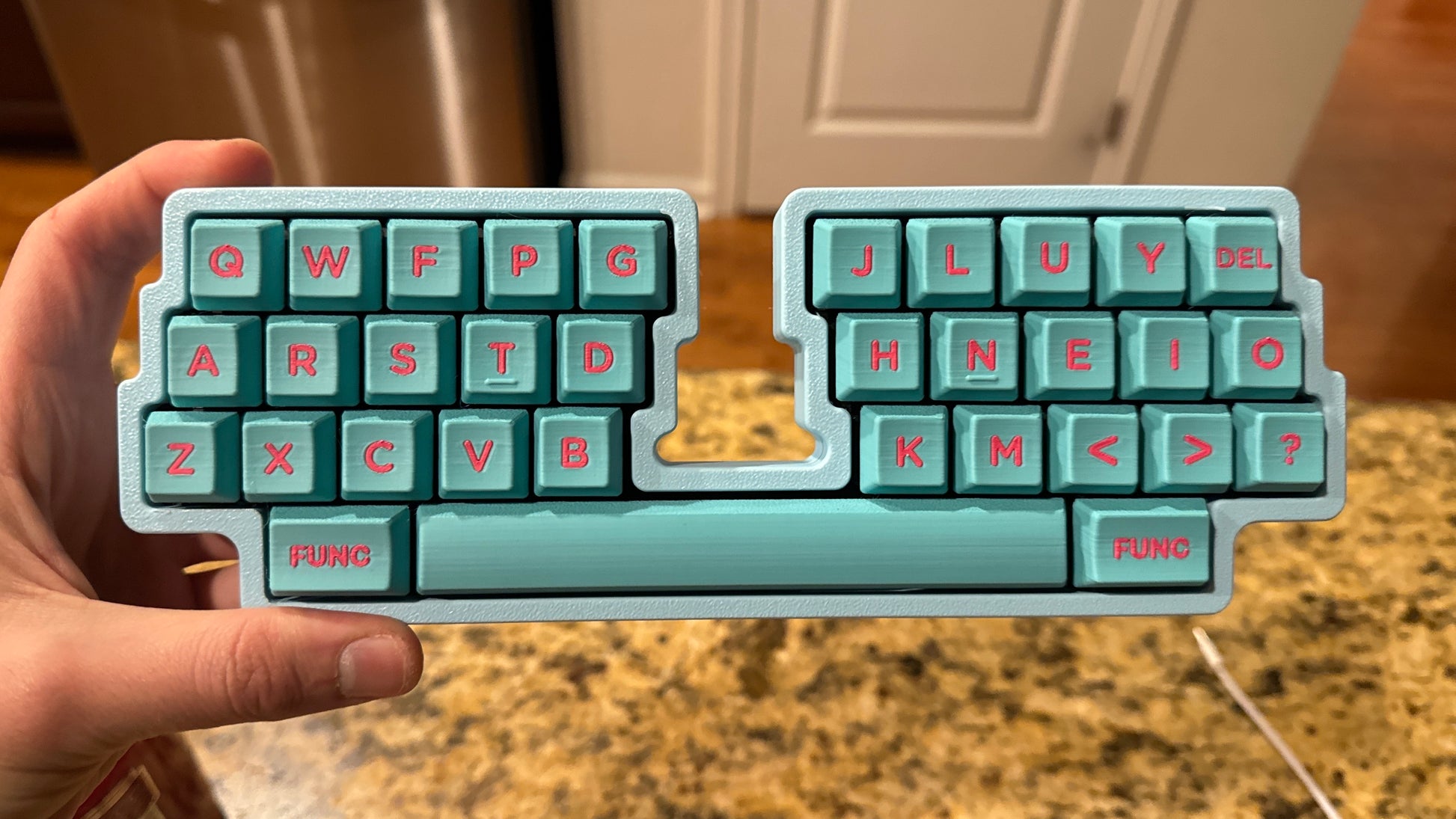

ScottoKatana Keyboard Case

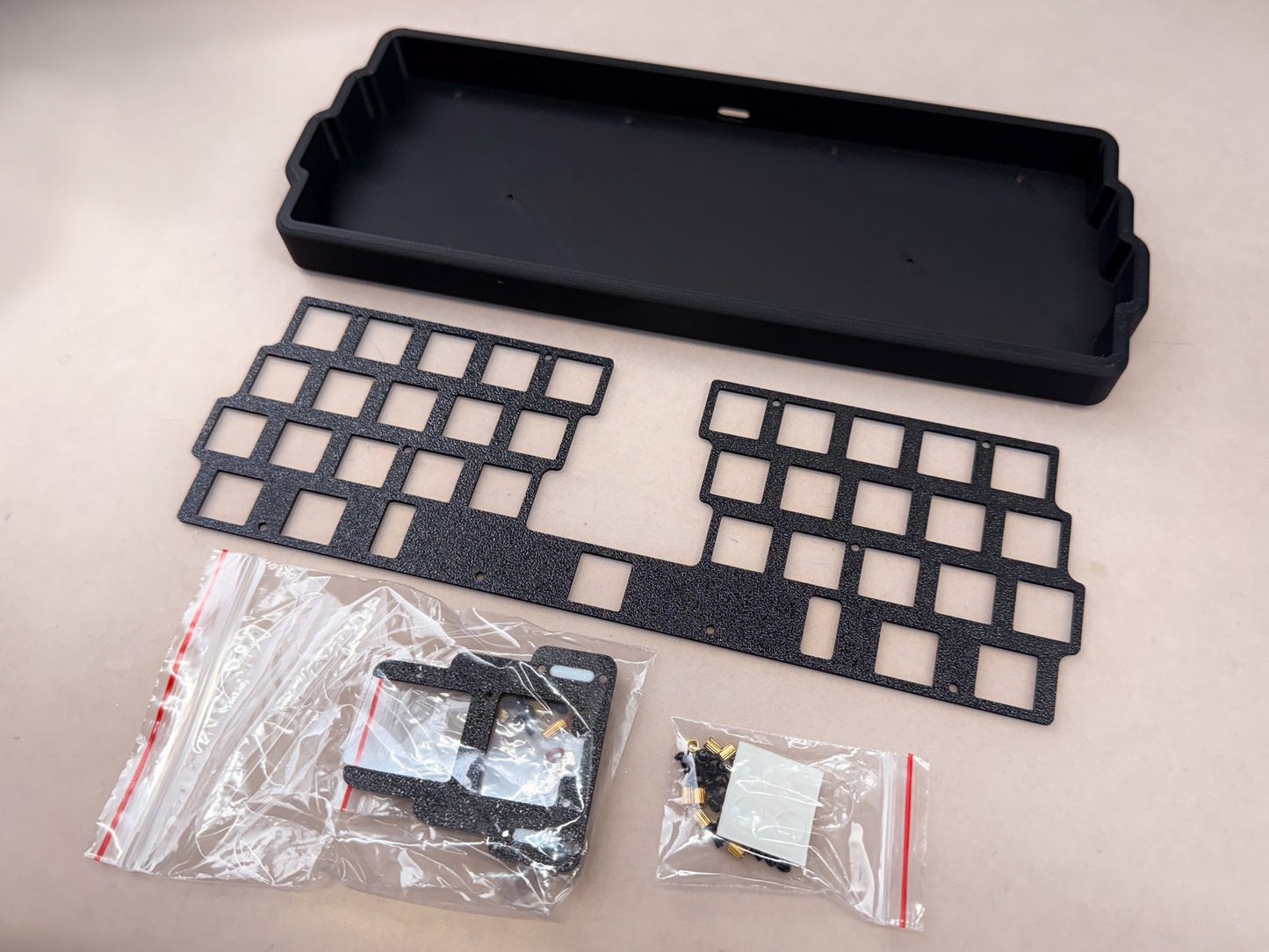

This listing is for a 3D printed case and plate along with mounting hardware so you can build it yourself. The PCB edition also includes the plexiglass OLED cover along with RGB diffuser.

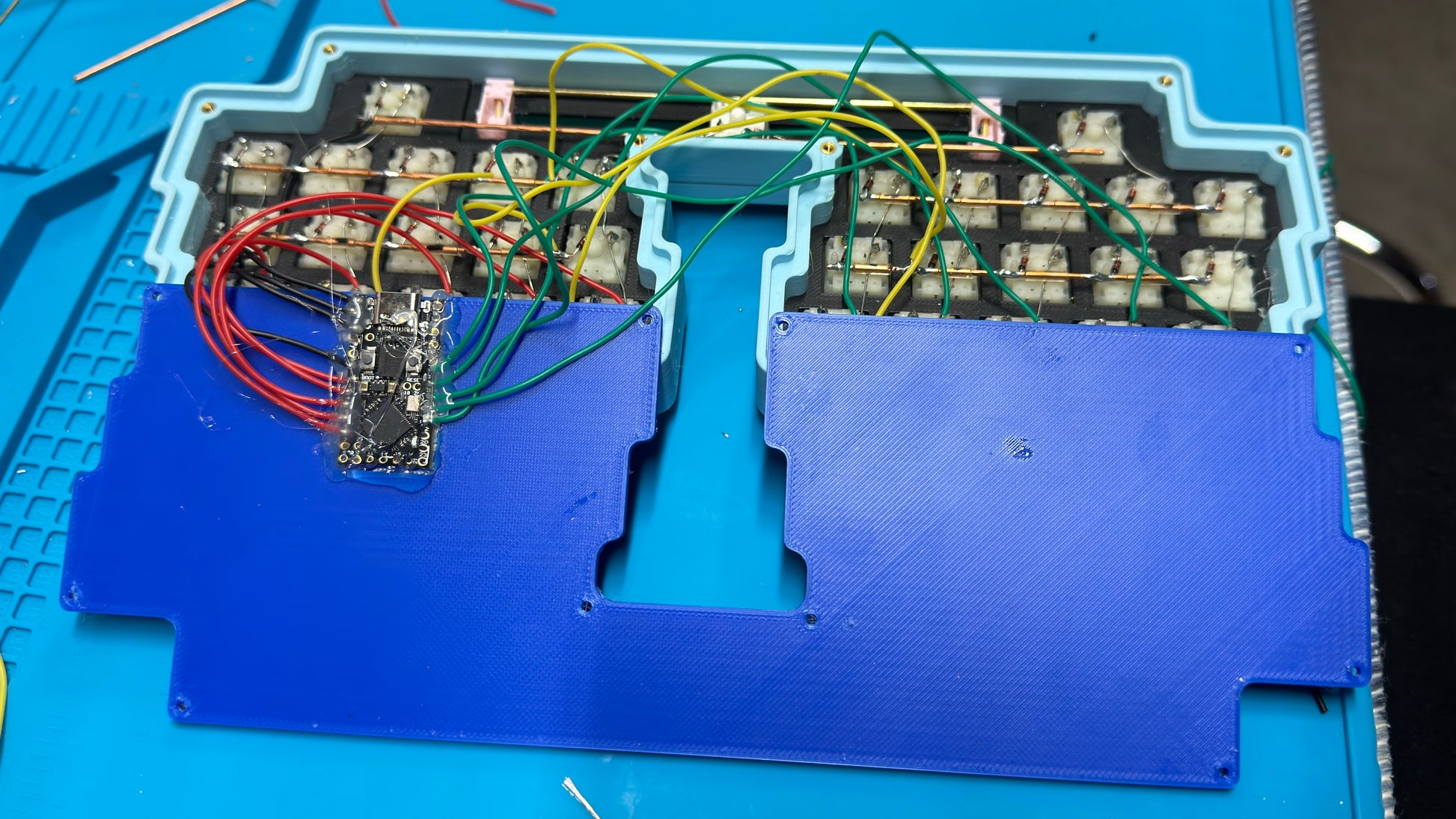

 In order to complete the handwired build, you will also need the following:

• 1 RP2040 or ATmega32U4 Pro Micro
• 33 1N4148 diodes
• 10 M2x5mm screws
• 10 M2 heat set inserts
• 1 6.25u plate mount stabilizer
• 33 MX switches
• 30 1u keycaps
• 2 1.5u keycaps
• 1 6.25u keycap

For the PCB build, you will need the following:

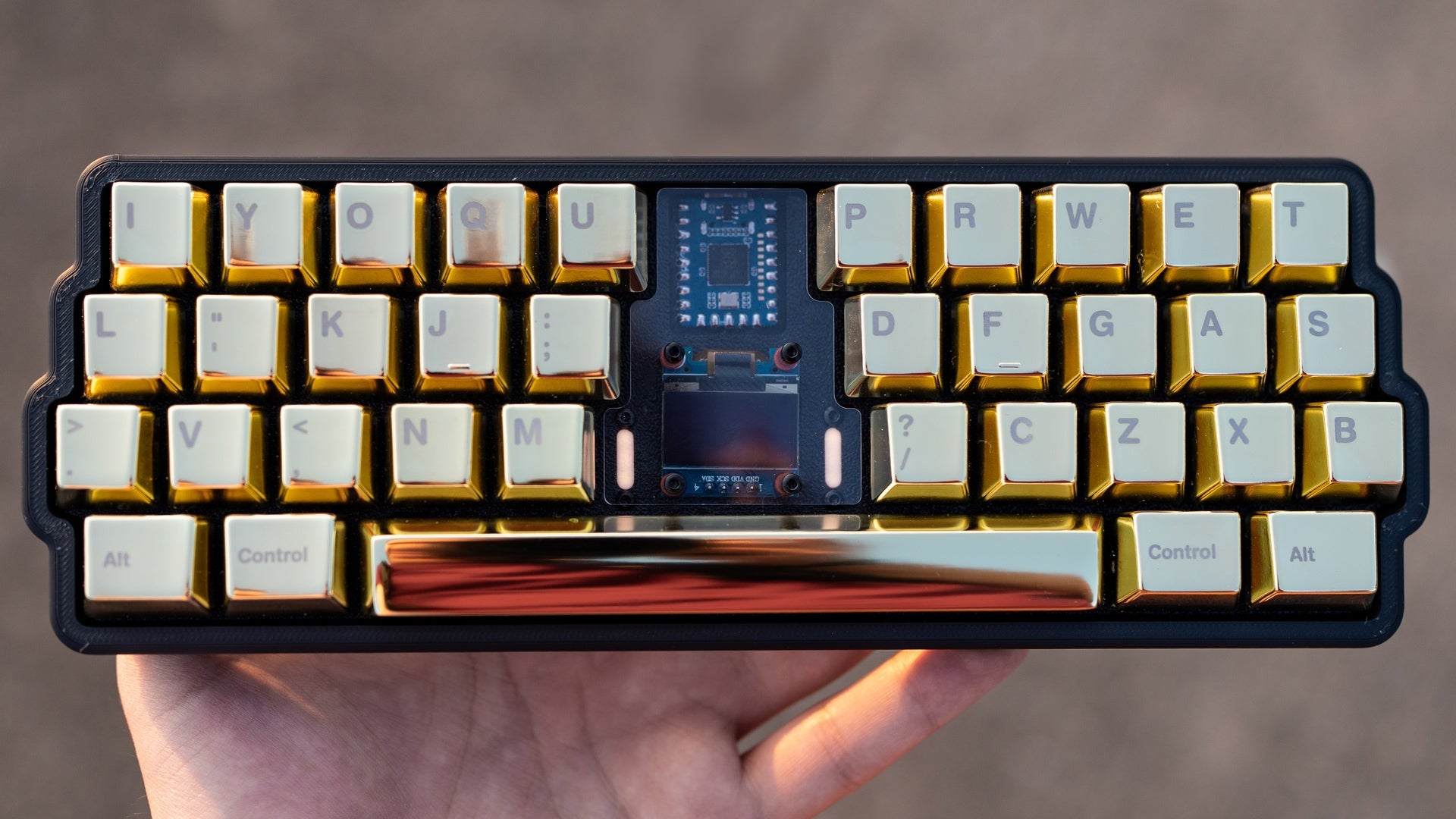

• 1 ScottoKatana PCB Kit
• 1 RP2040 Zero
• 1 128x64 OLED Display
• 1 7u Screw-In Stabilizer
• 35 MX switches
• 30 1u keycaps
• 4 1.25u keycaps
• 1 7u keycap

You can read more about the ScottoKatana (Handwired Edition) here and the ScottoKatana (PCB Edition) here.

Disclaimer

If you order your PCB with the diffuser kit you will only receive one, not two for each item. The case comes with the diffuser kit already so make sure of this before checking out. No refunds will be given for the “missing” diffuser kit if you order a diffuser kit with your PCB and a 3D printed case.
