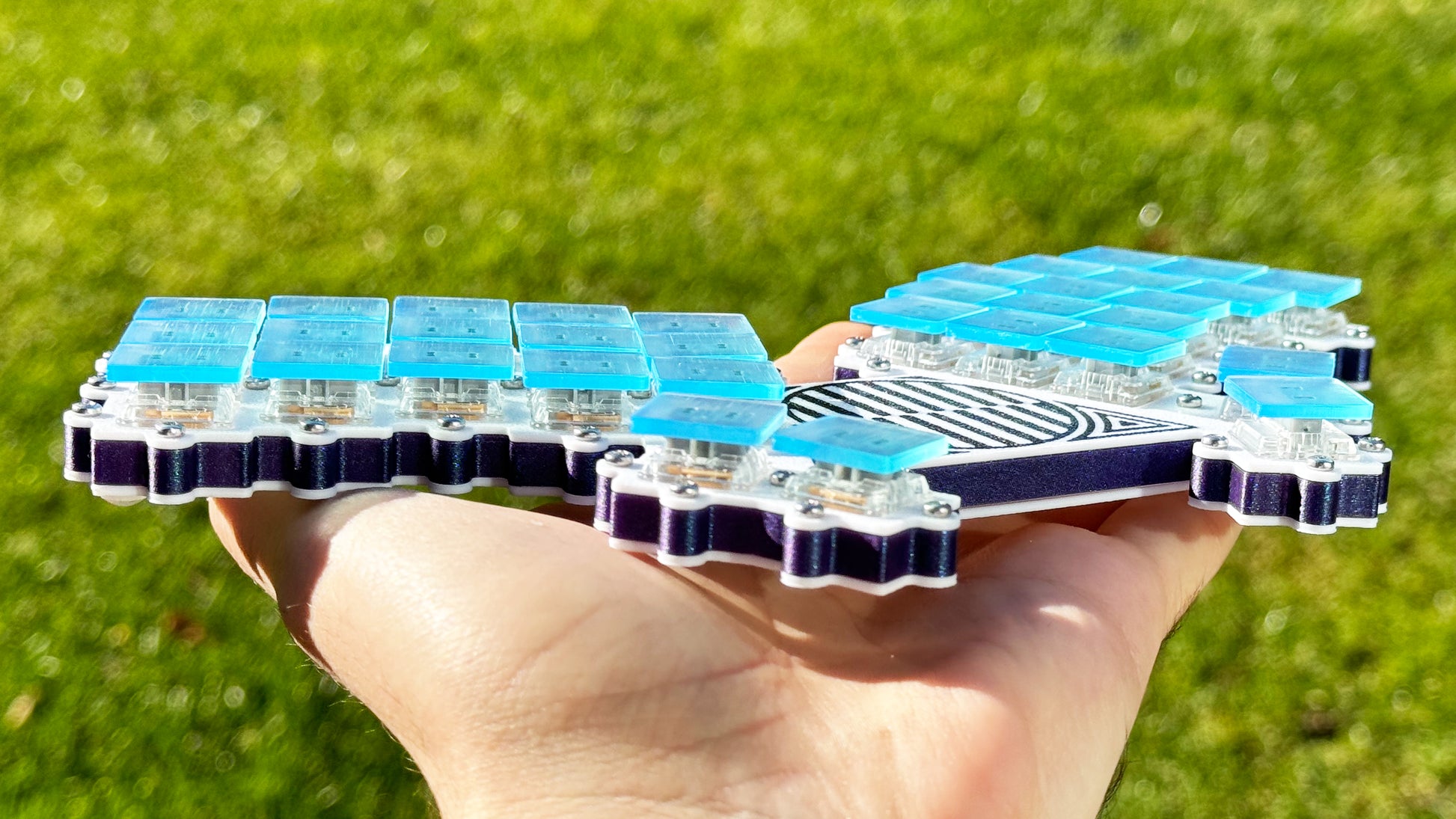

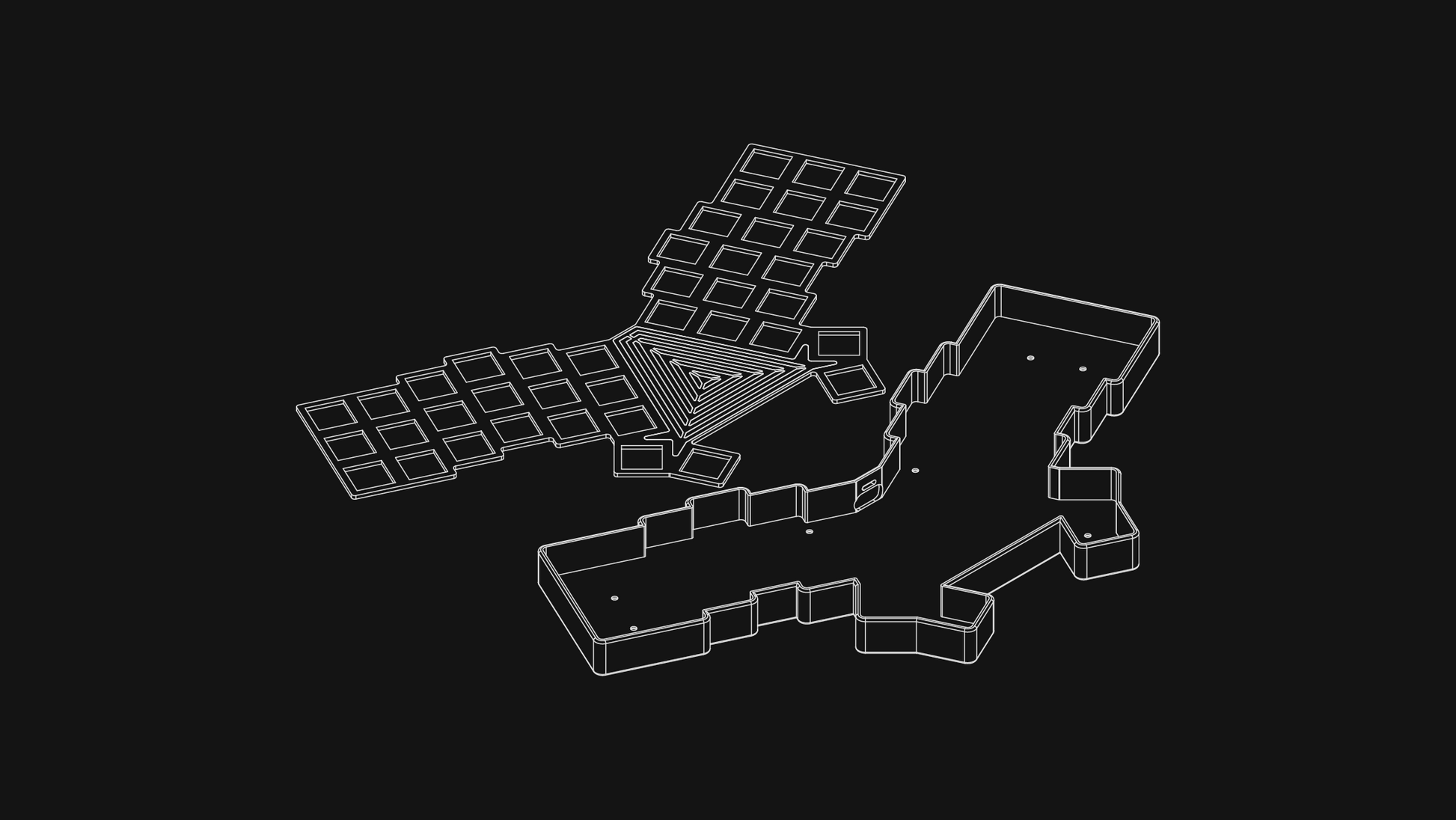

ScottoWing Keyboard Case

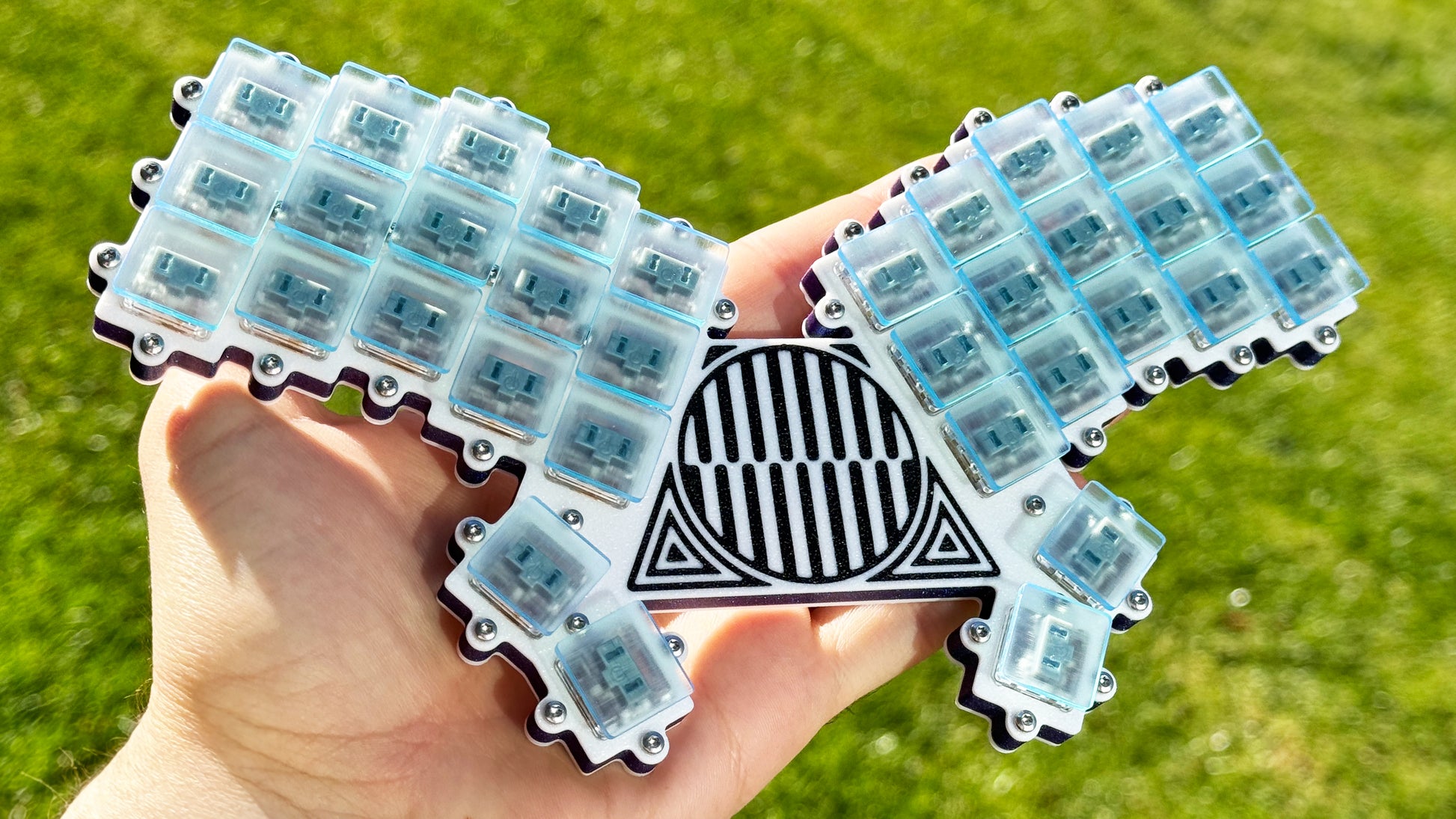

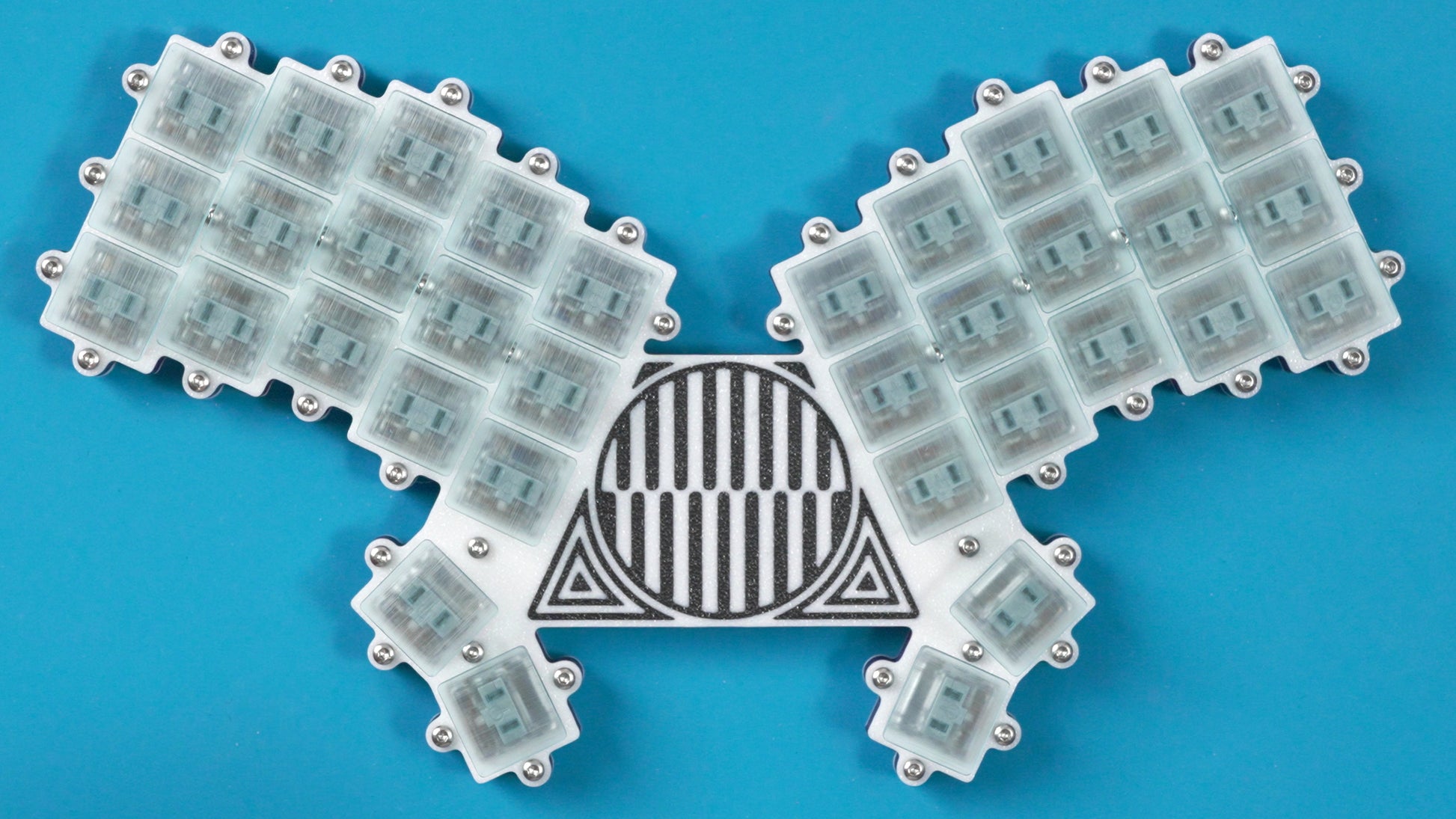

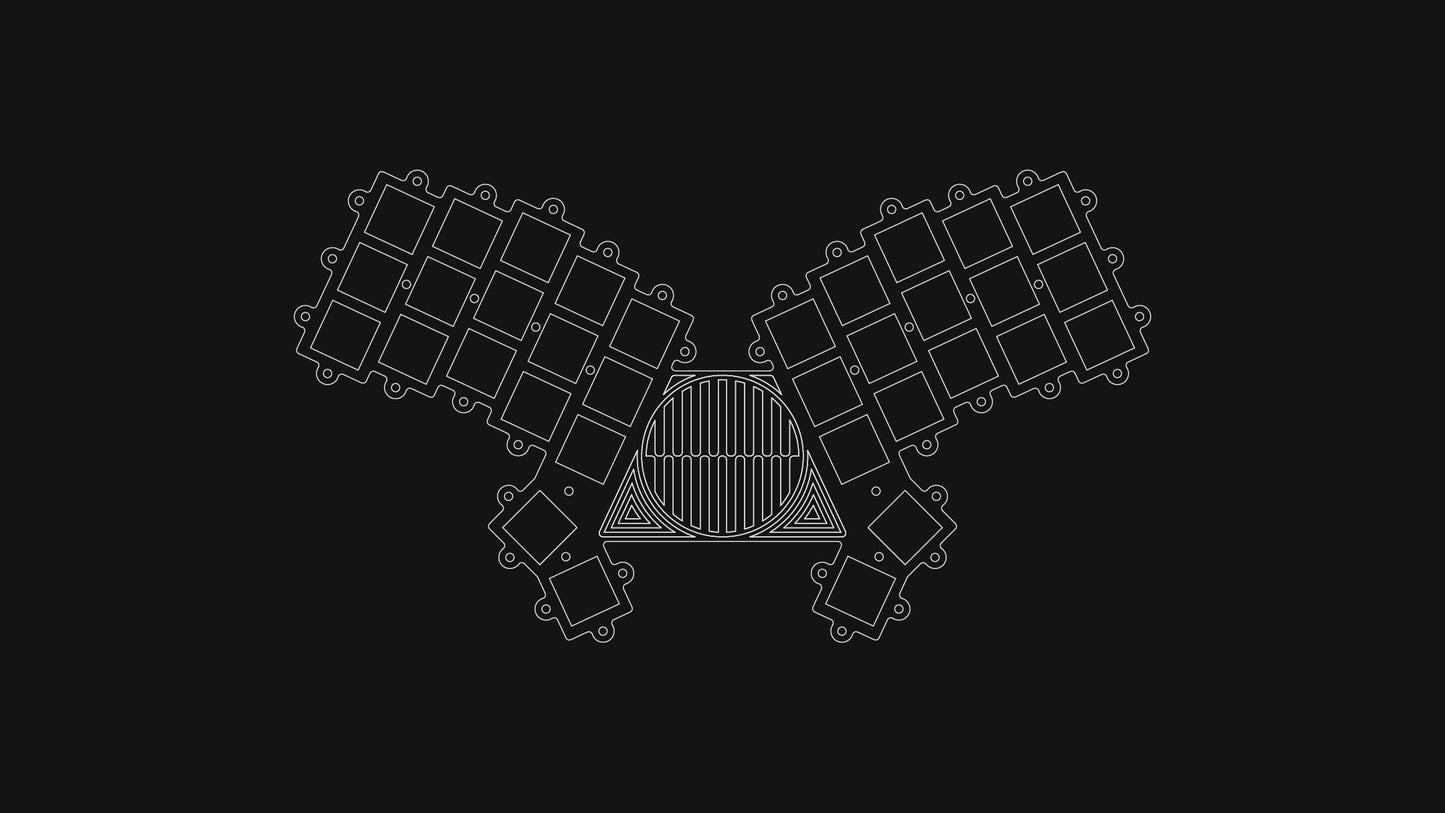

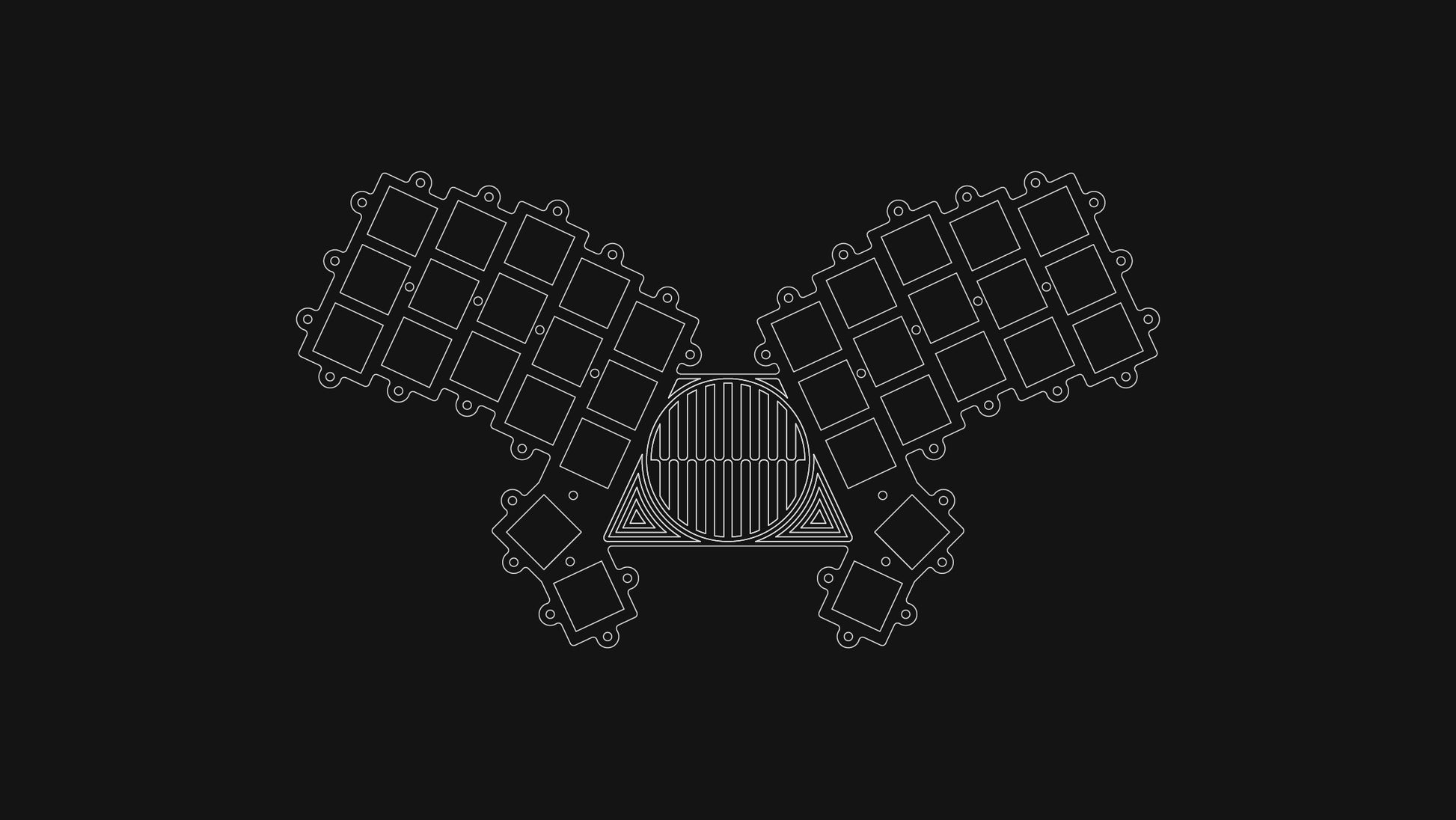

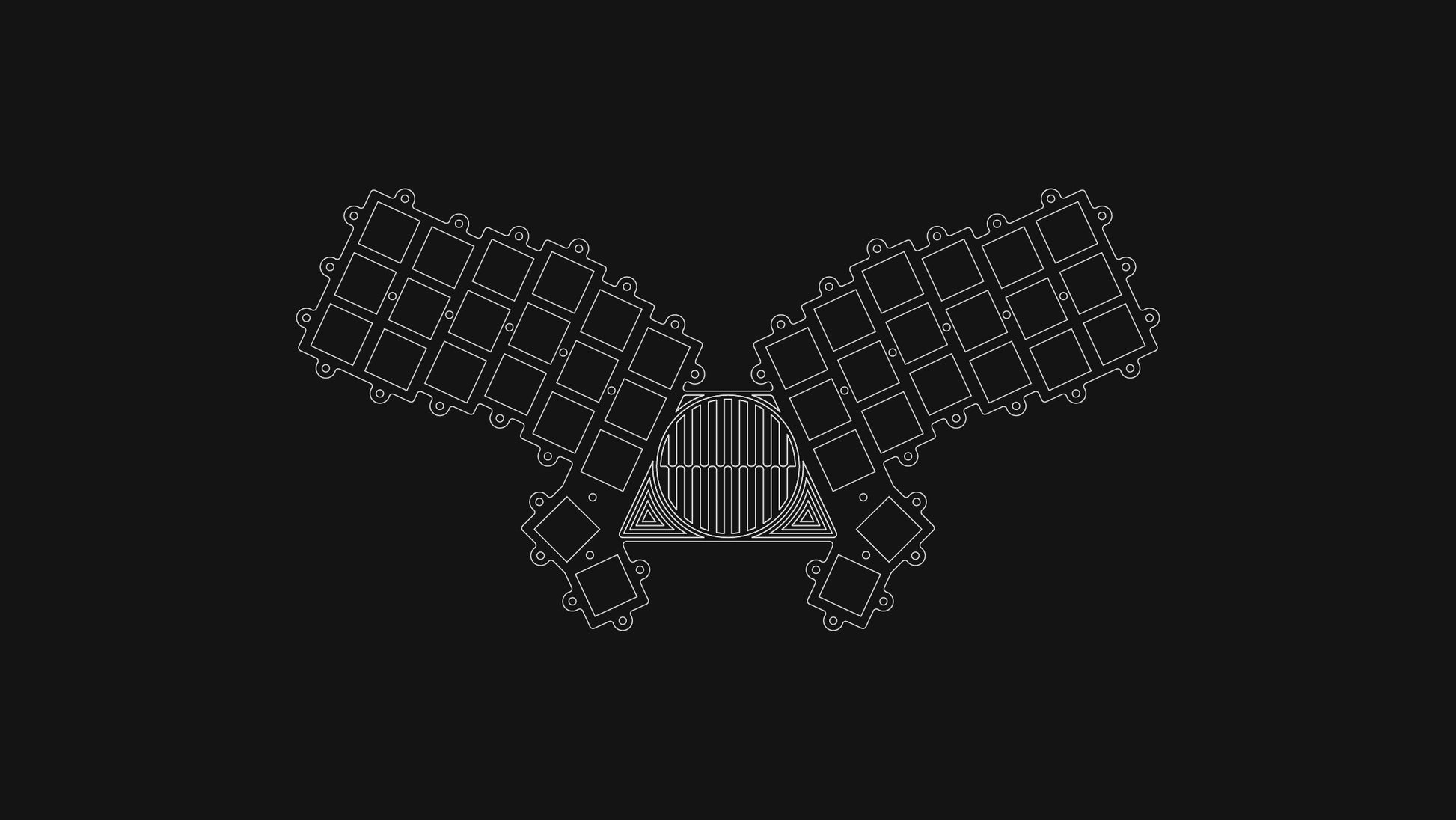

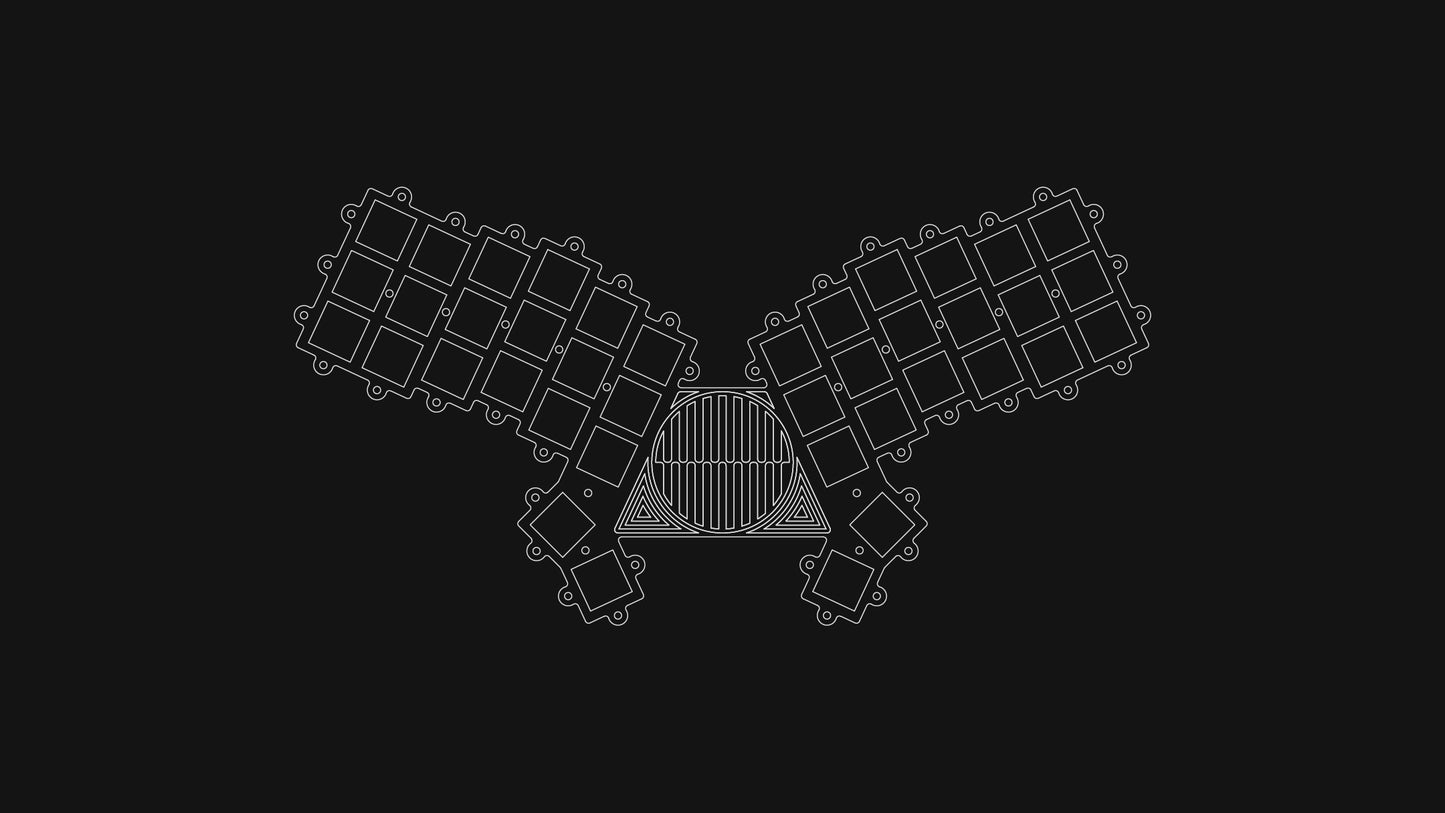

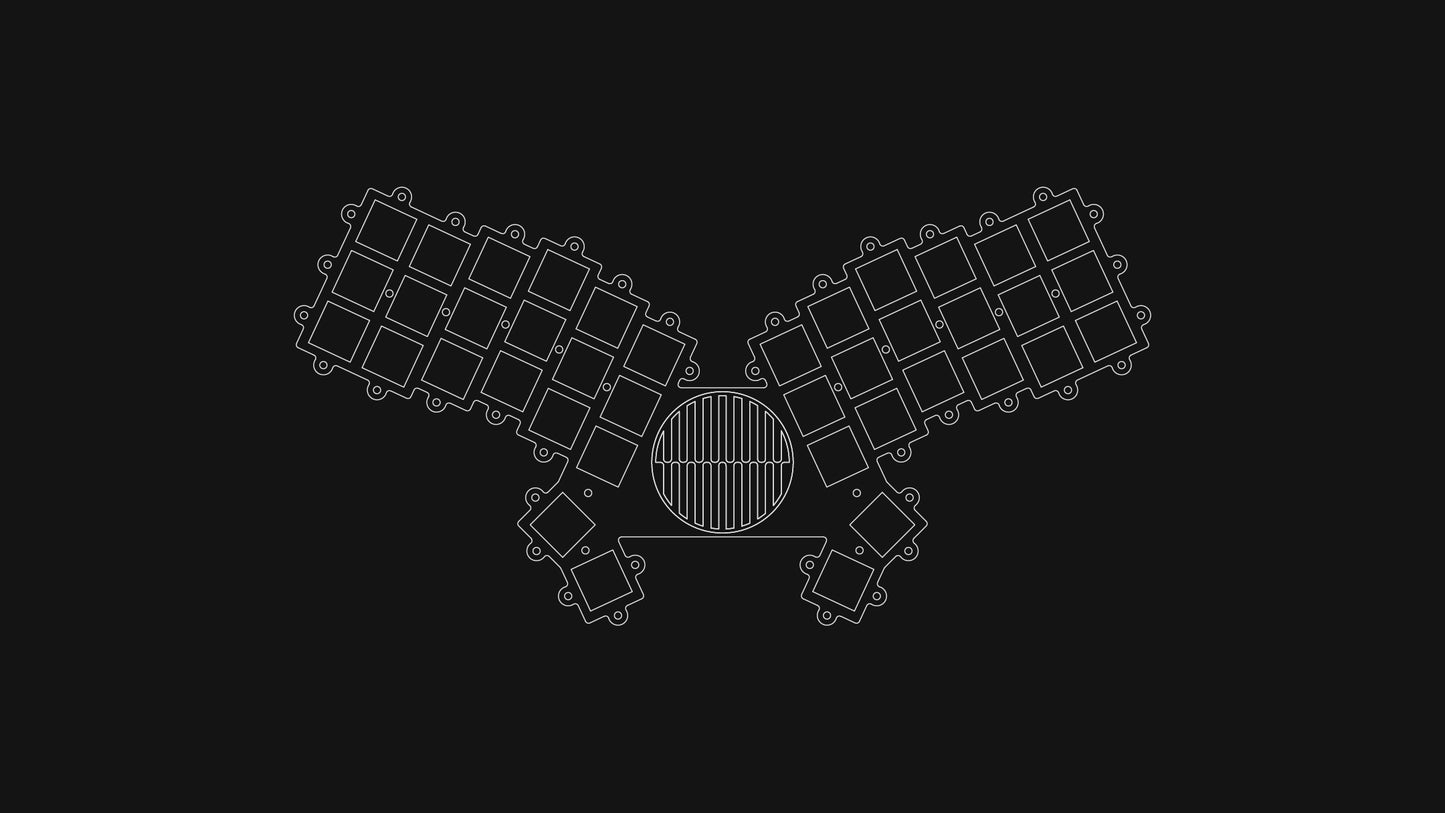

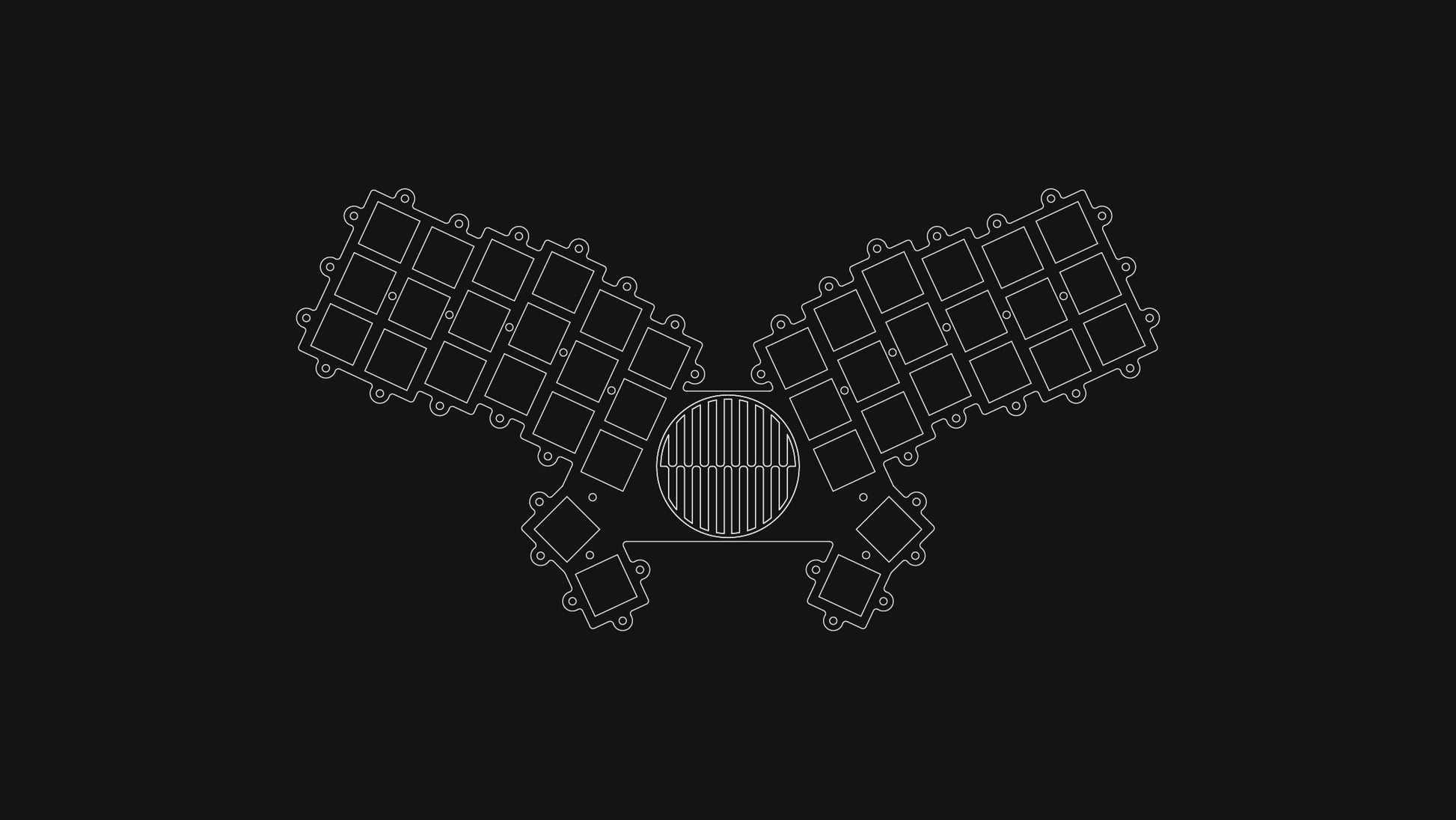

The ScottoWing is a 3x5 (34-keys) or 3x6 (40-keys) split monoblock ergonomic column-staggered keyboard. The handwired edition supports Choc switches with 18x17mm spacing and the PCB Edition supports MX switches.

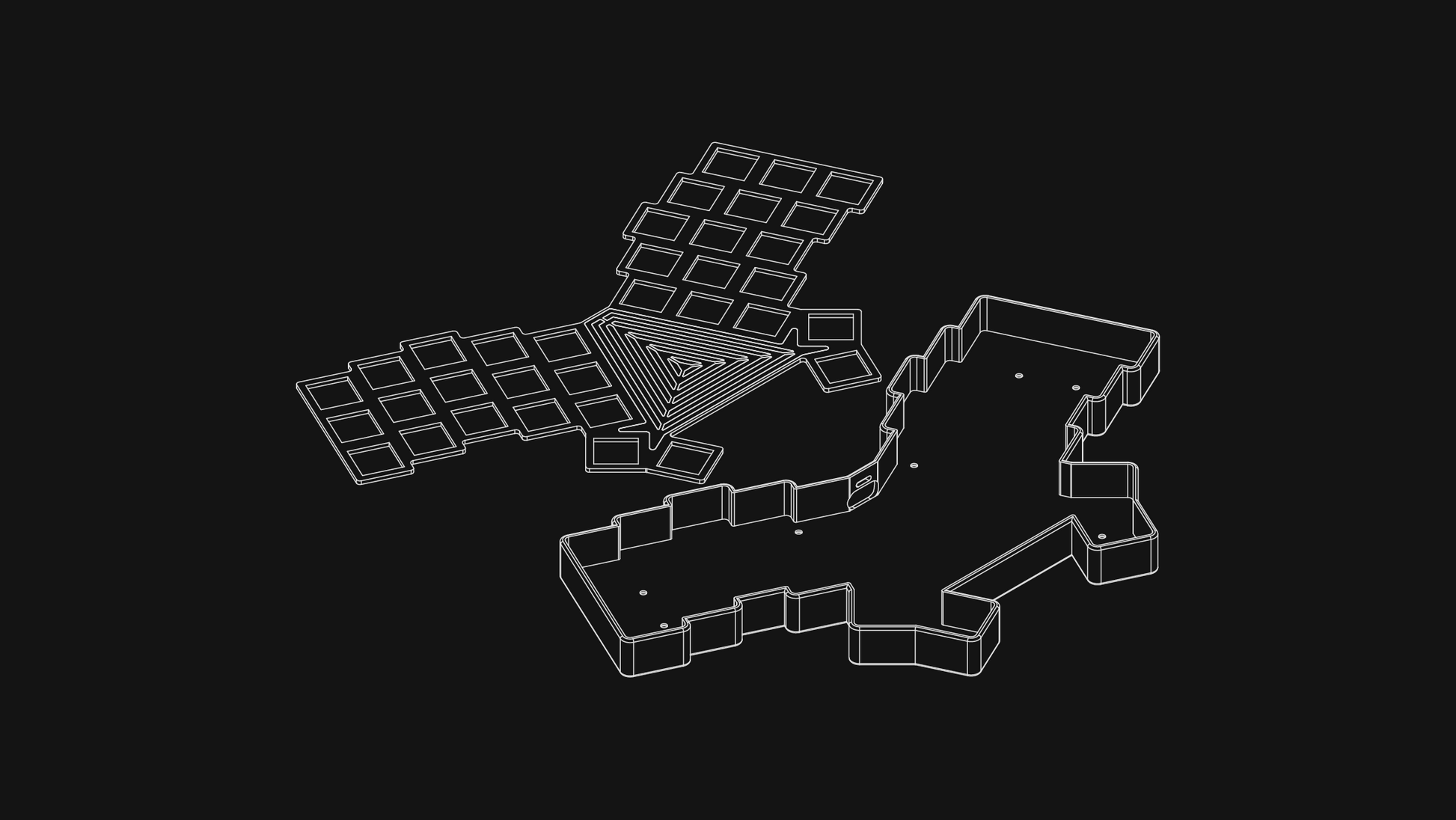

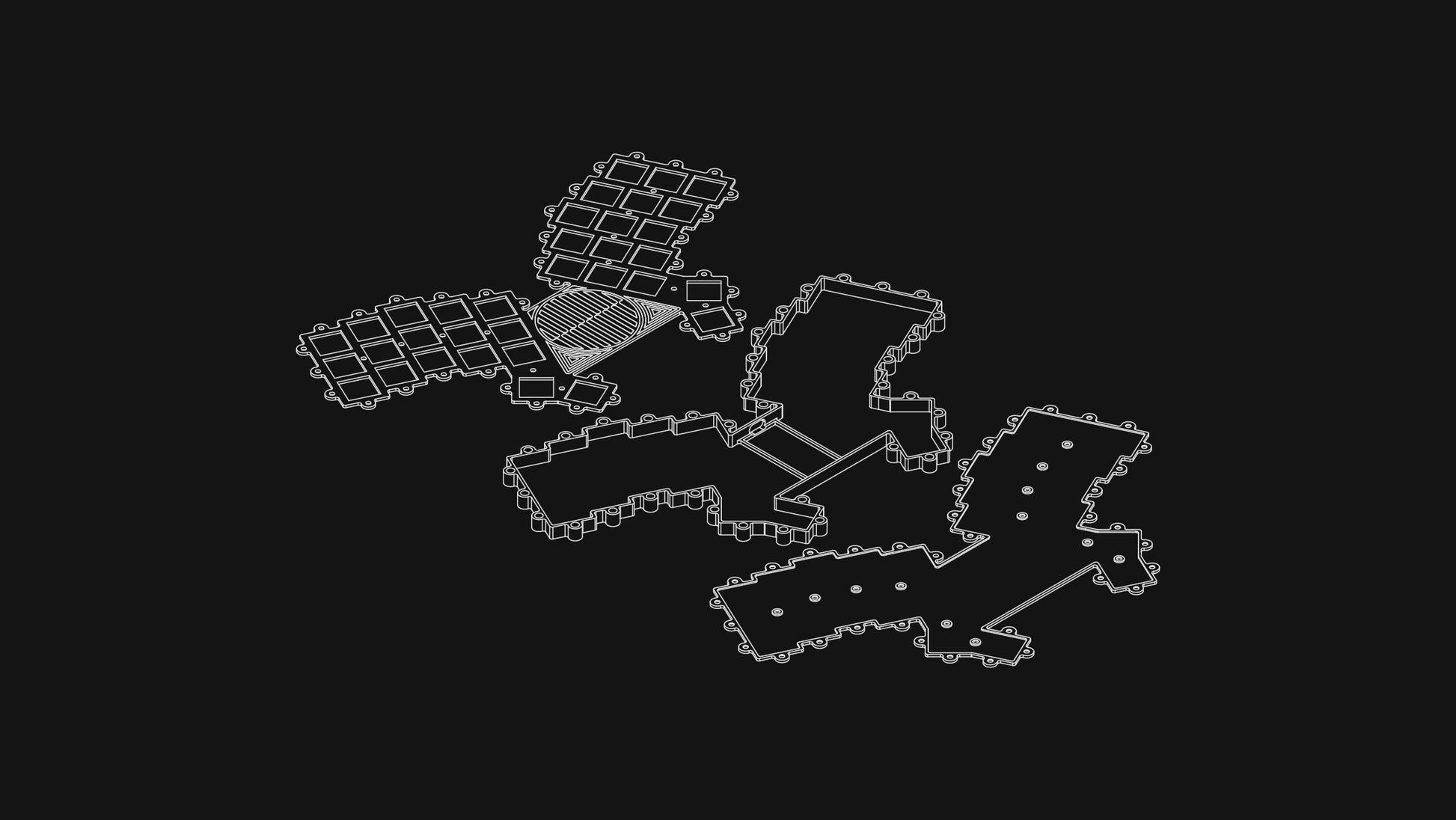

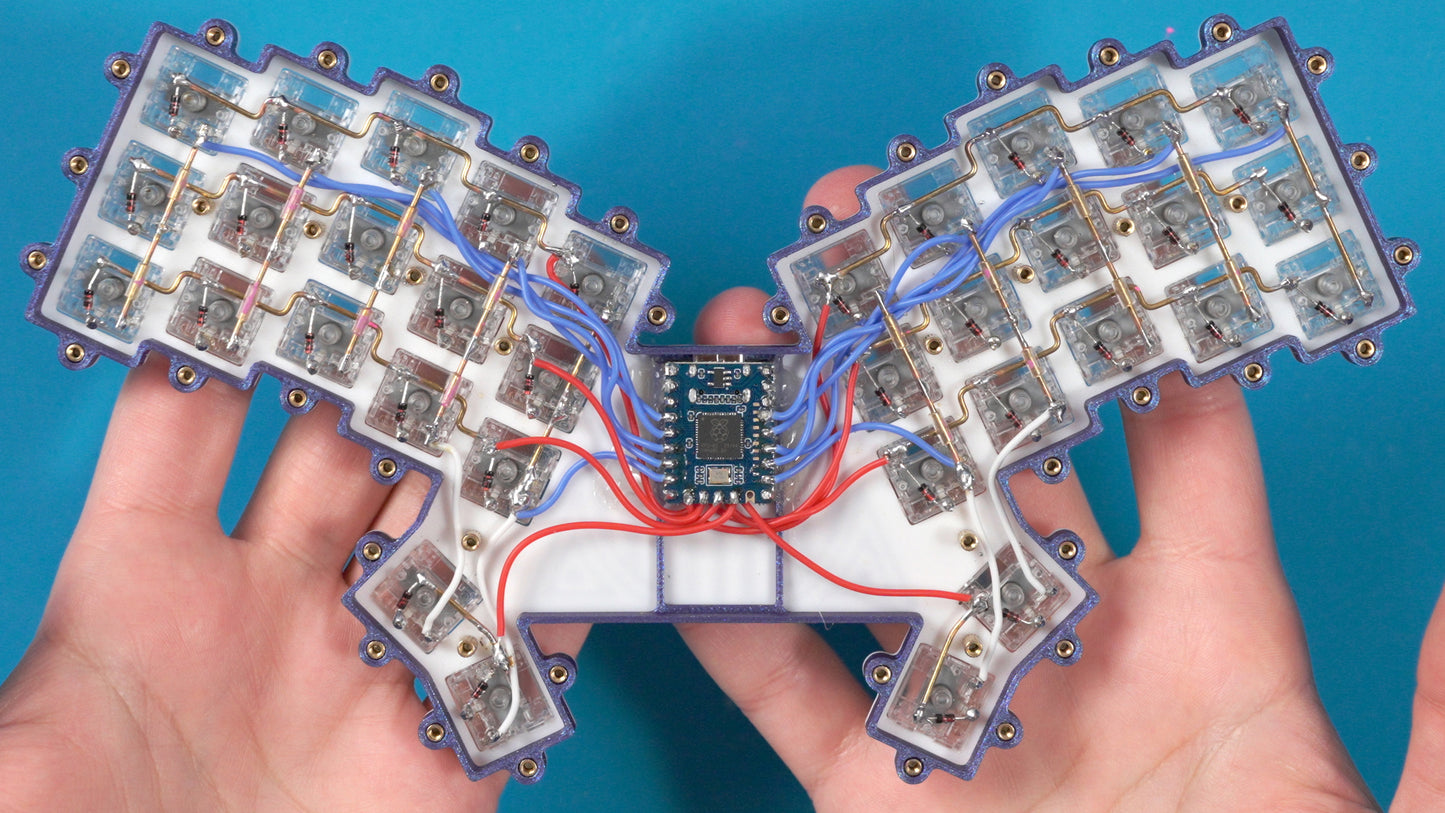

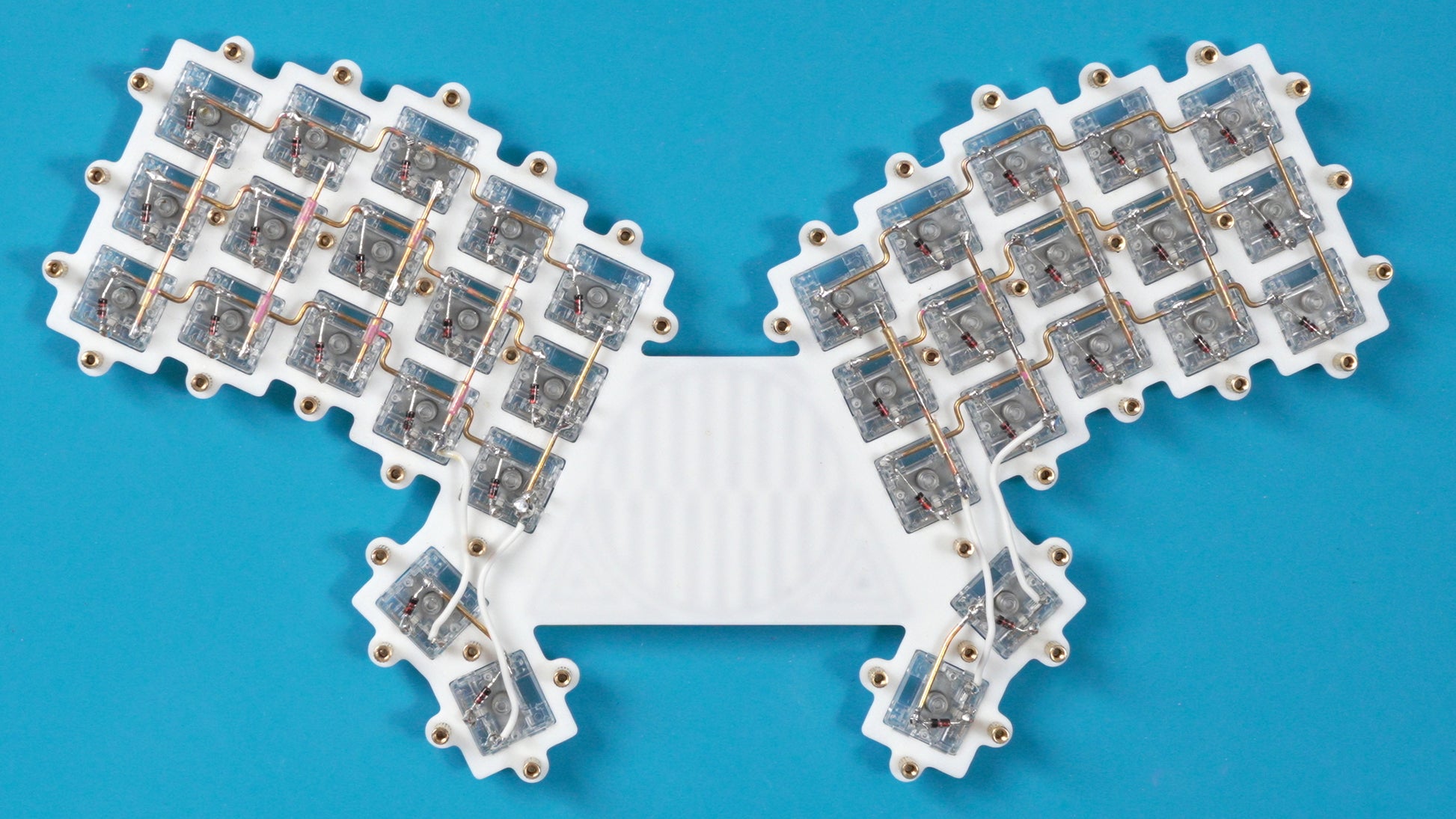

This listing is for a 3D printed case so you can build it yourself. To complete the handwired build, you will also need the following:

• 1 RP2040 Zero or Arduino Pro Micro
• 34 or 40 1N4148 diodes
• 48 M2x6mm standoffs
• 96 M2x4mm screws
• 1 Pin-Socket Headers set (RP2040 Zero)

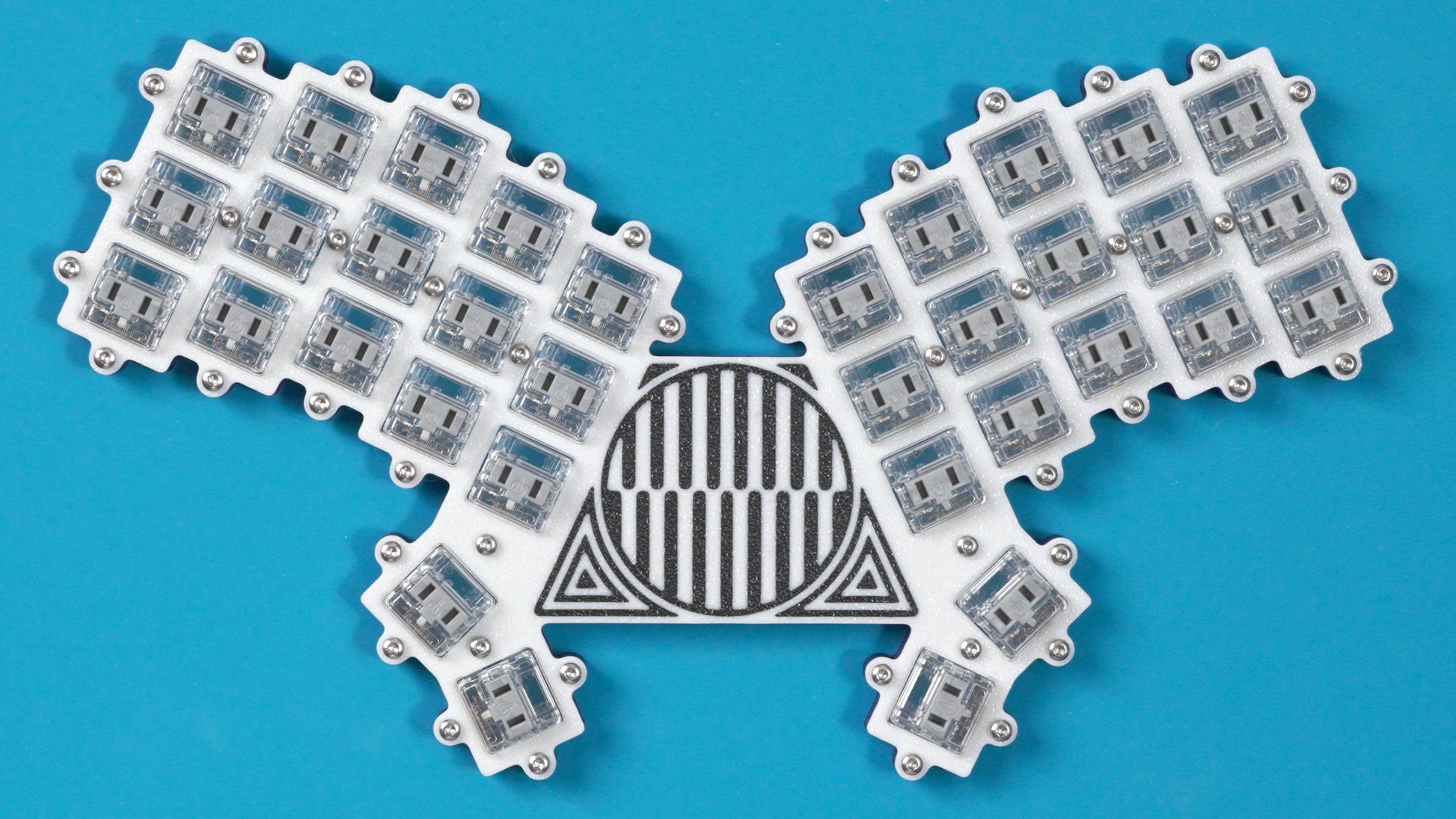

• 34 or 40 Choc switches
• 34 or 40 1u keycaps

For the PCB build, you will need the following:

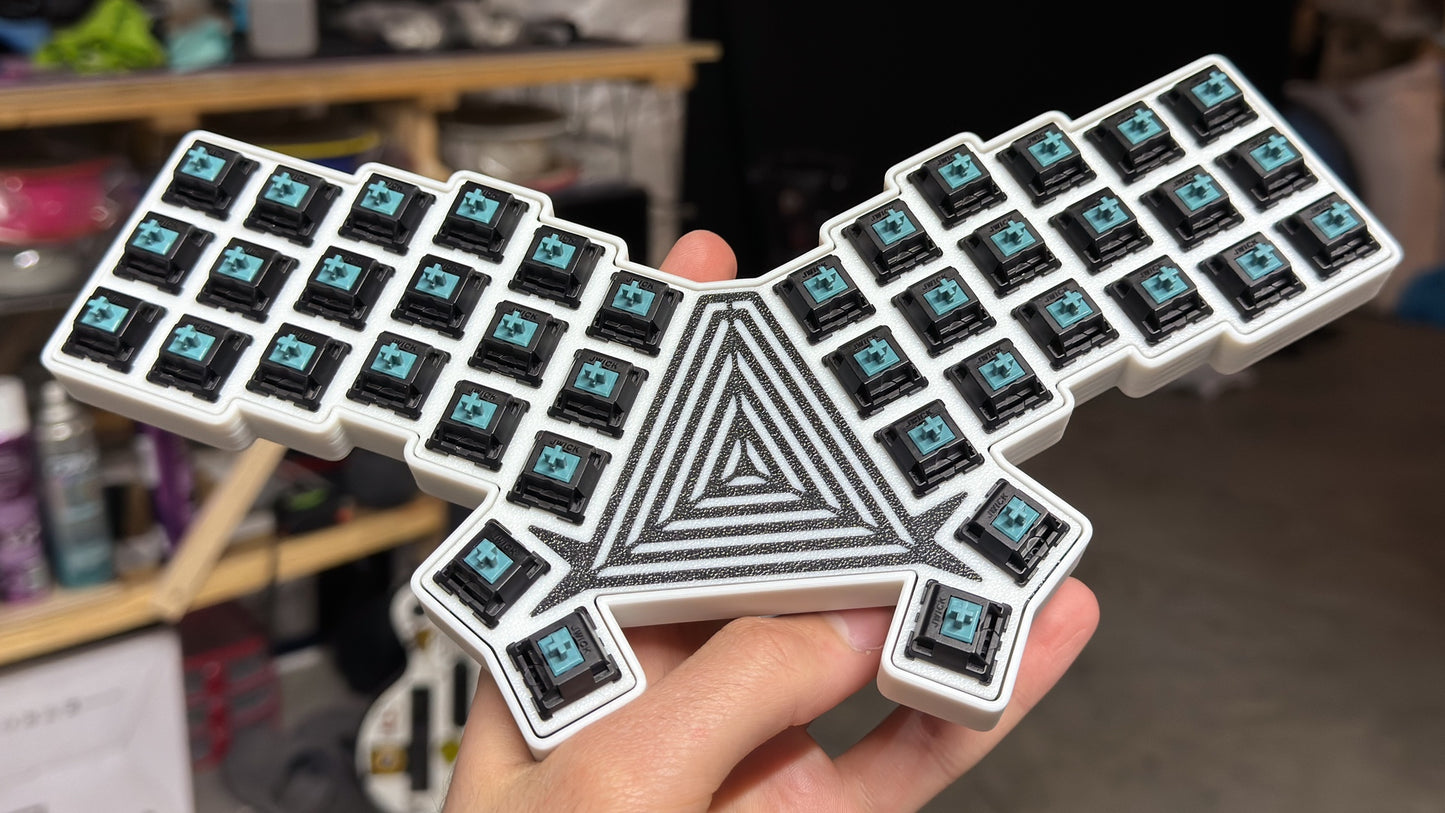

• 34 or 40 MX switches
• 34 or 40 1u keycaps
• 1 RP2040 Pro Micro or nice!nano
• 1 ScottoWing PCB Kit

You can read more about the ScottoWing (Handwired Edition) and here the ScottoWing (PCB Edition) here.

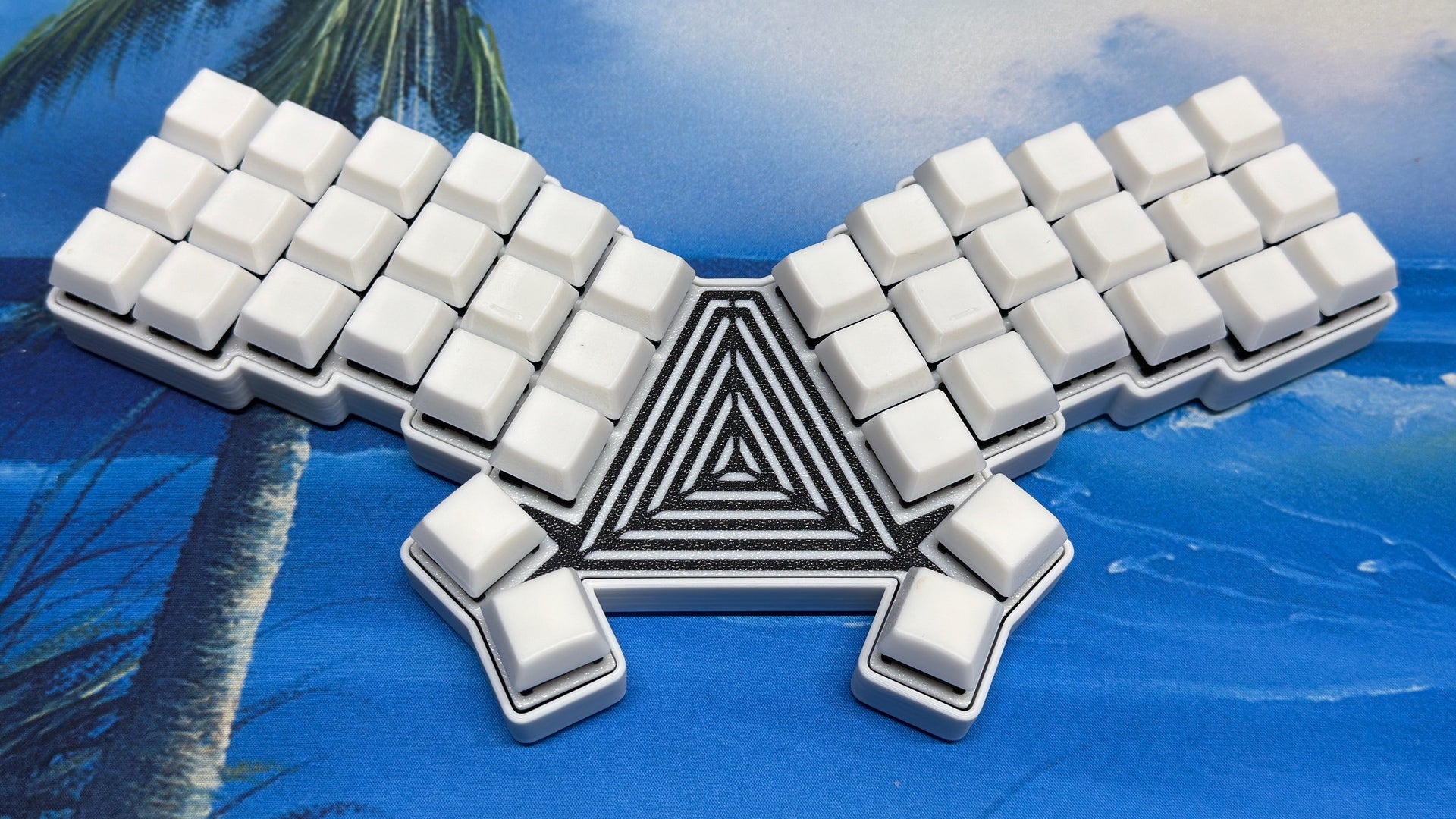

Since this board is multi-color, the color of the design will be opposite of the color you choose. For example, the design will be printed in black if you select "white" as your color.
