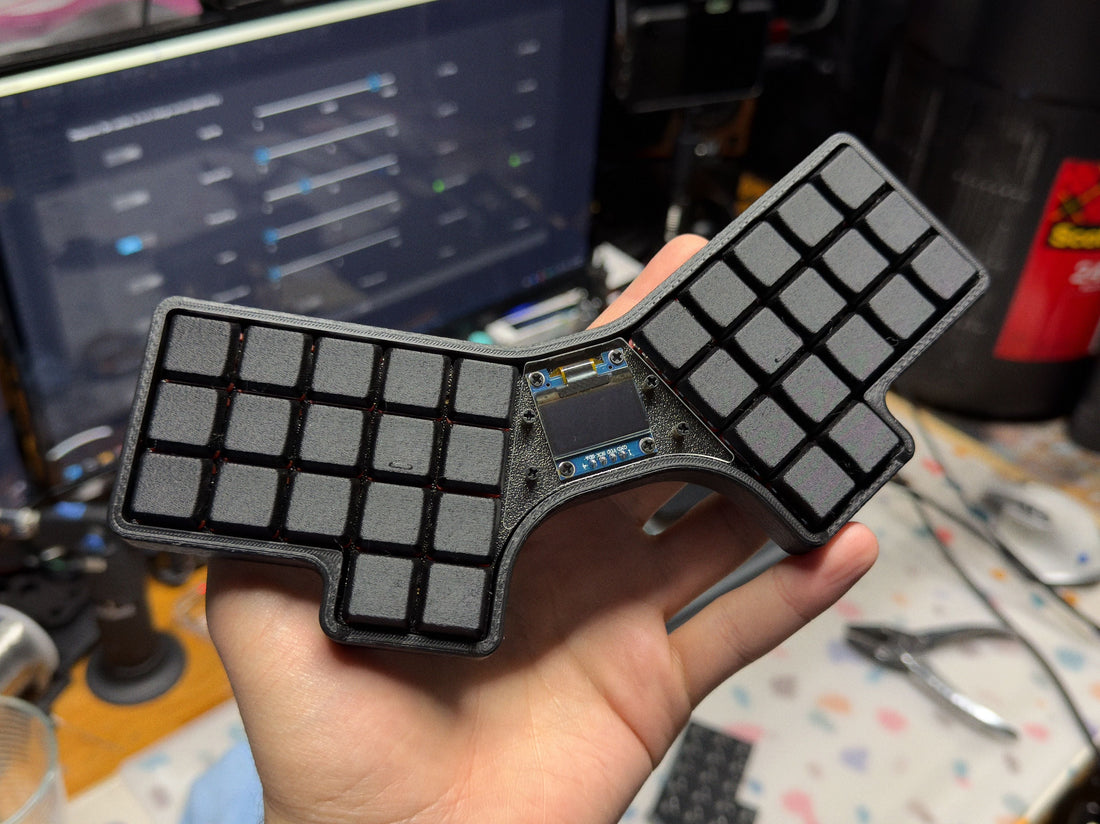

The ScottoRang is a 34-key split monoblock ergonomic 16x16mm Choc spaced keyboard with a central 128x64 OLED display. I used Choc Pro Red switches along with my custom ScottoCaps (Scooped) in 16x16mm spacing. I have the OLED display setup to show the matrix animation when on the base layer and all other layers will just show text. Everything is powered off a single RP2040 Zero running QMK firmware.
Getting One
If you’re interested in getting one assembled, contact me and we can discuss the components and other details for a commissioned build. If you want to build it yourself, you'll need the following:
- 1 ScottoRang PCB Kit
- 1 RP2040 Zero
- 1 128x64 OLED
- 1 3D printed case
- 1 ScottoRang Keycaps Set (optional)
- 34 Choc switches
- 34 1u keycaps
You can find the case files here.
Firmware
You can find the most up-to-date firmware on the ScottoKeebs Github repository. Also available are the pre-compiled firmware files that you can simply download (right click, save as) and flash by dragging and dropping to the controller.
default.uf2 - Default QMK keymap in QWERTY
vial.uf2 - Colemak keymap with Vial configurator support.
scotto.uf2 - My personal QMK keymap in Colemak.
The ScottoRang features bootmagic that will allow you to hold the top left key when plugging it in to enter bootloader mode for firmware flashing.
Video
Coming soon...
