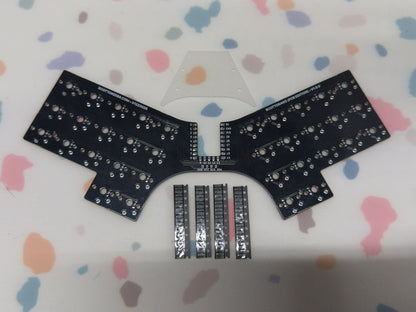

ScottoRang PCB Kit

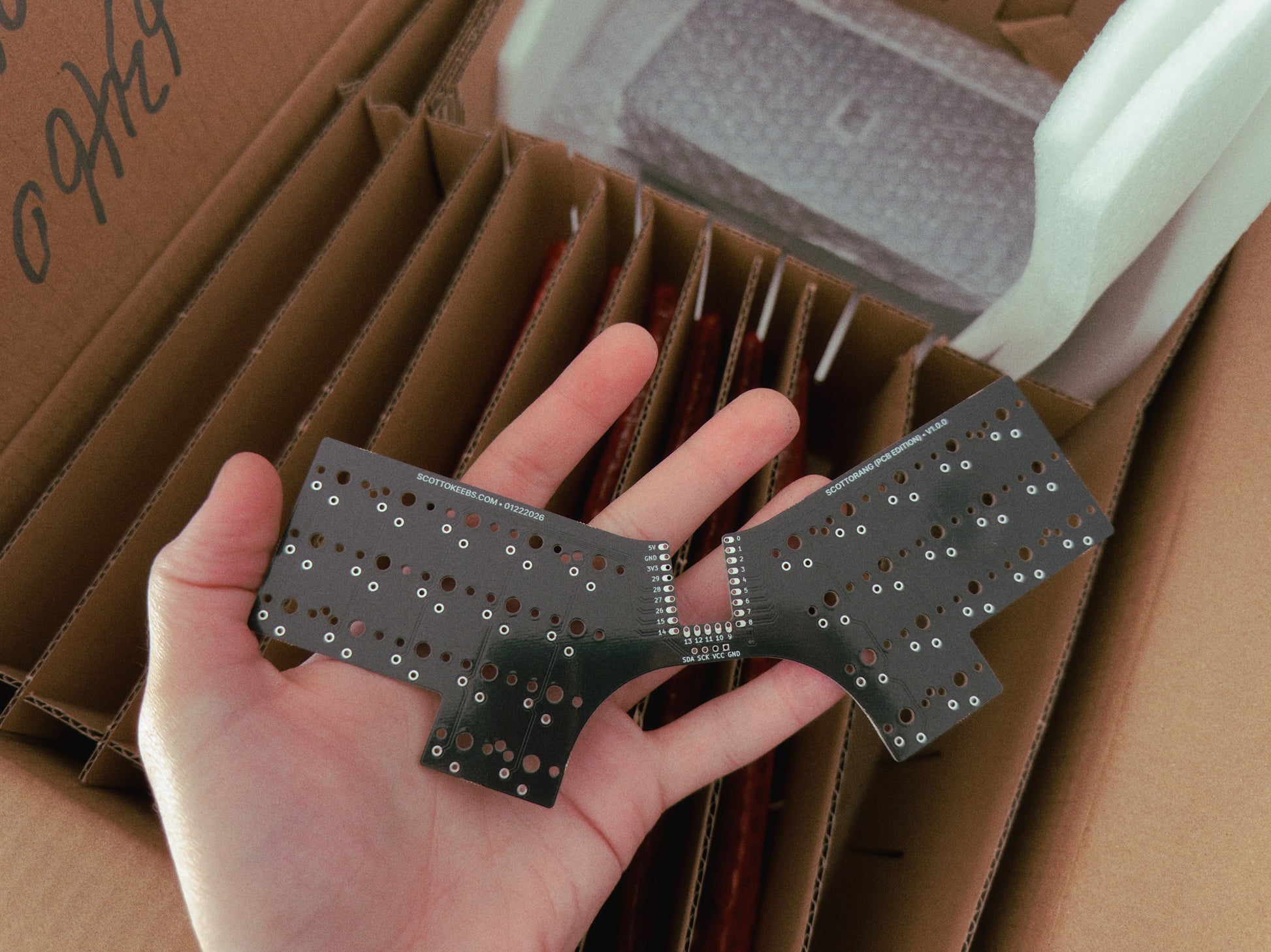

This is a PCB kit for the ScottoRang (PCB Edition) which is a 34-key split monoblock ergonomic 16x16mm Choc spaced keyboard with a central 128x64 OLED display. It's powered by a single RP2040 Zero and supports Vial for GUI customization.

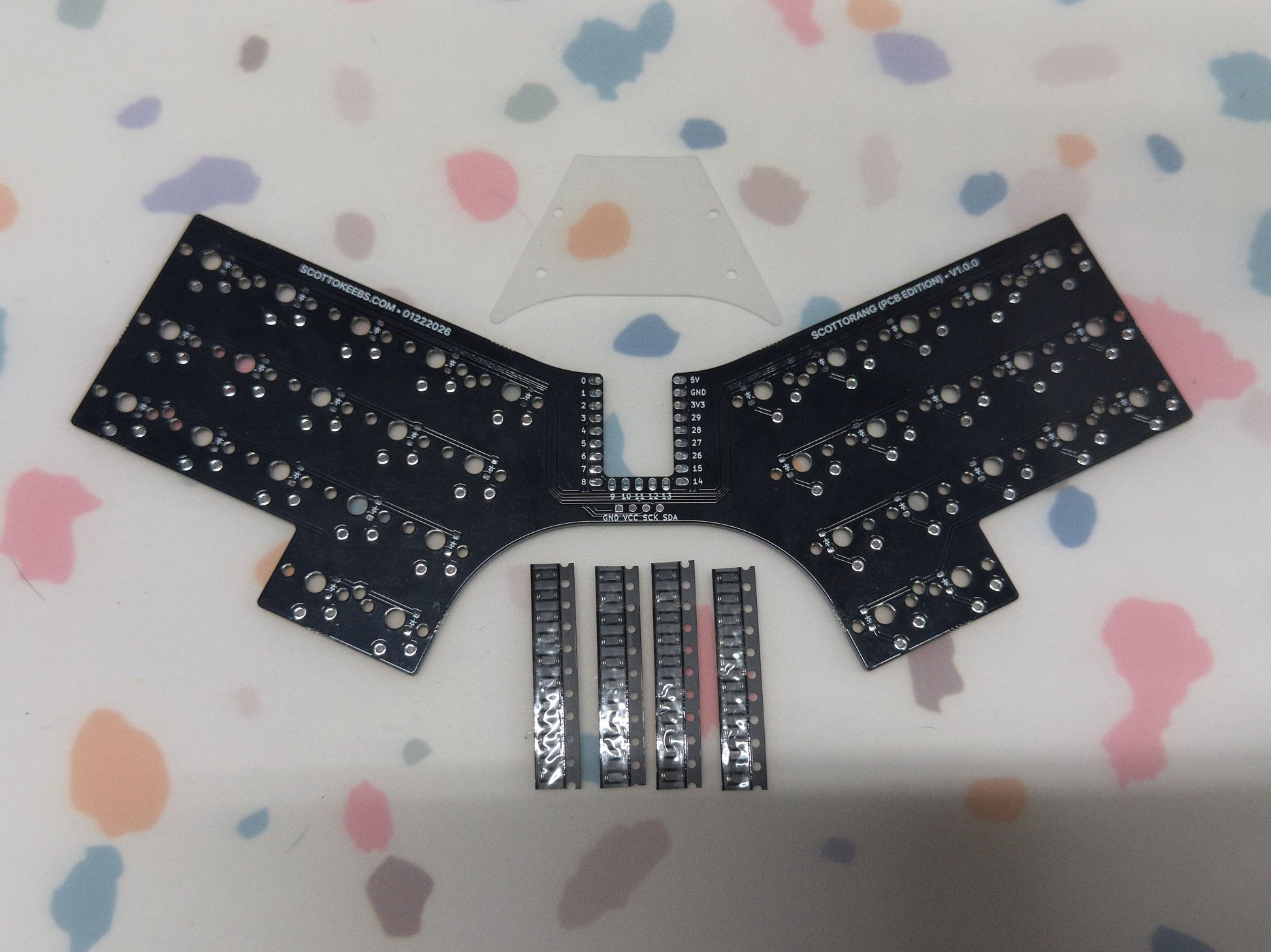

The kit includes the following:

• 1 ScottoRang PCB
• 1 Plexiglass OLED Cover
• 34 1N4148W SOD-123 Diodes
• 8 4mm MTF Standoffs

• 4 4mm Standoffs
• 4 3mm Screws
• 8 4mm Screws

You will need the following to complete the build:

• 1 128x64 OLED

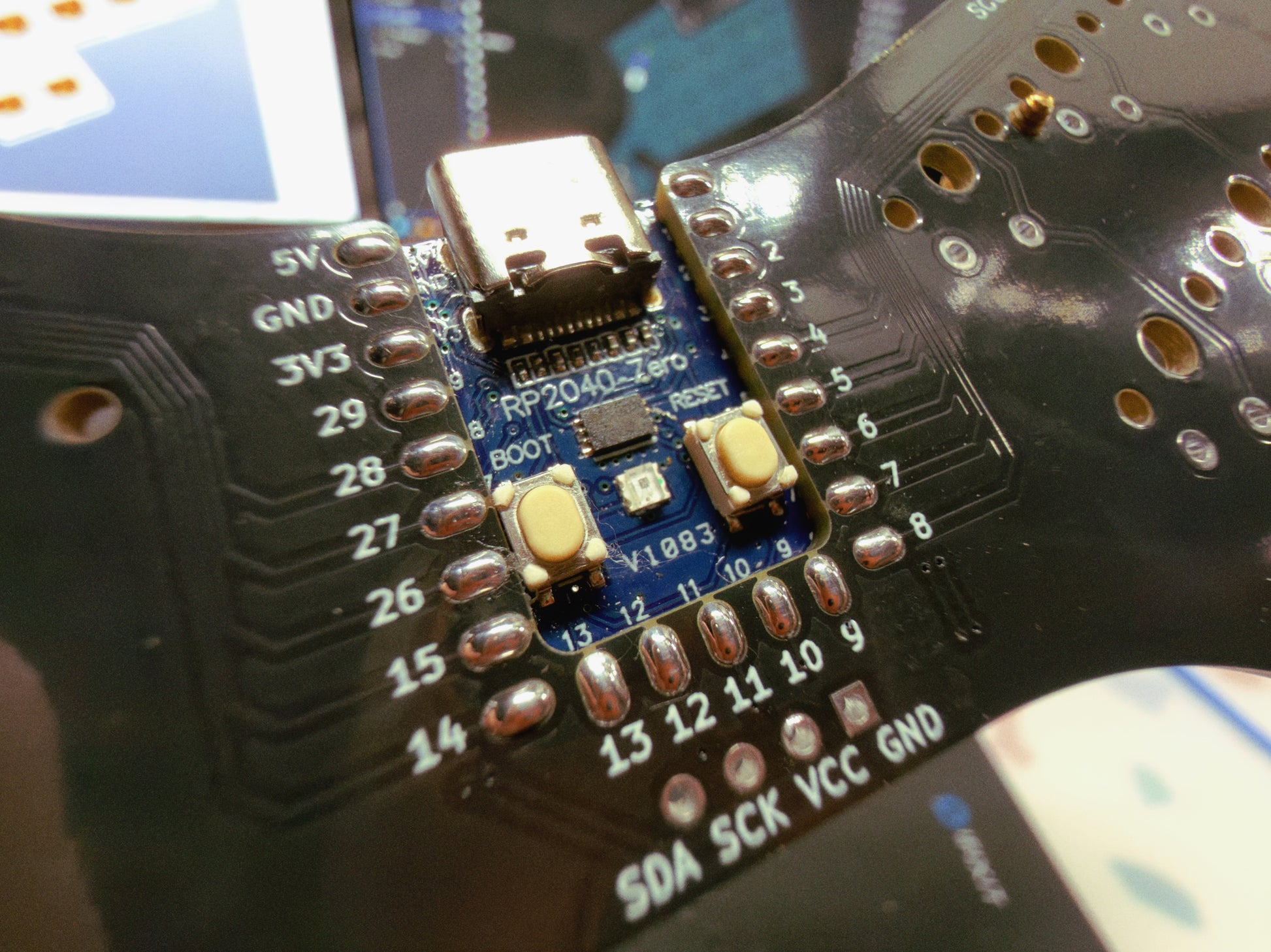

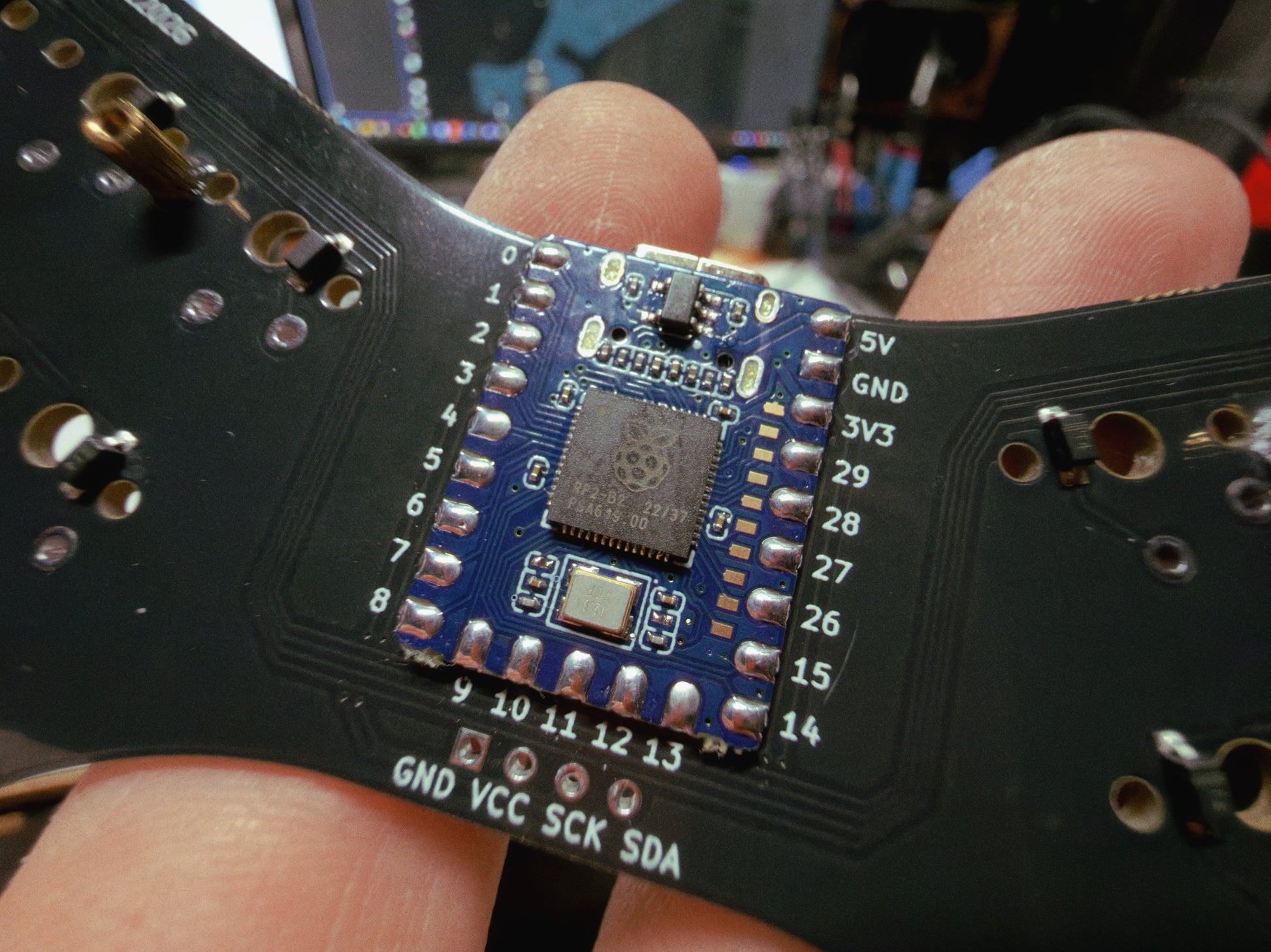

• 1 RP2040 Zero
• 1 3D printed case

• 1 ScottoRang Keycaps Set (optional)
• 34 Choc switches
• 34 1u keycaps

You can find the case files here.

Firmware

You can find the firmware files here.
