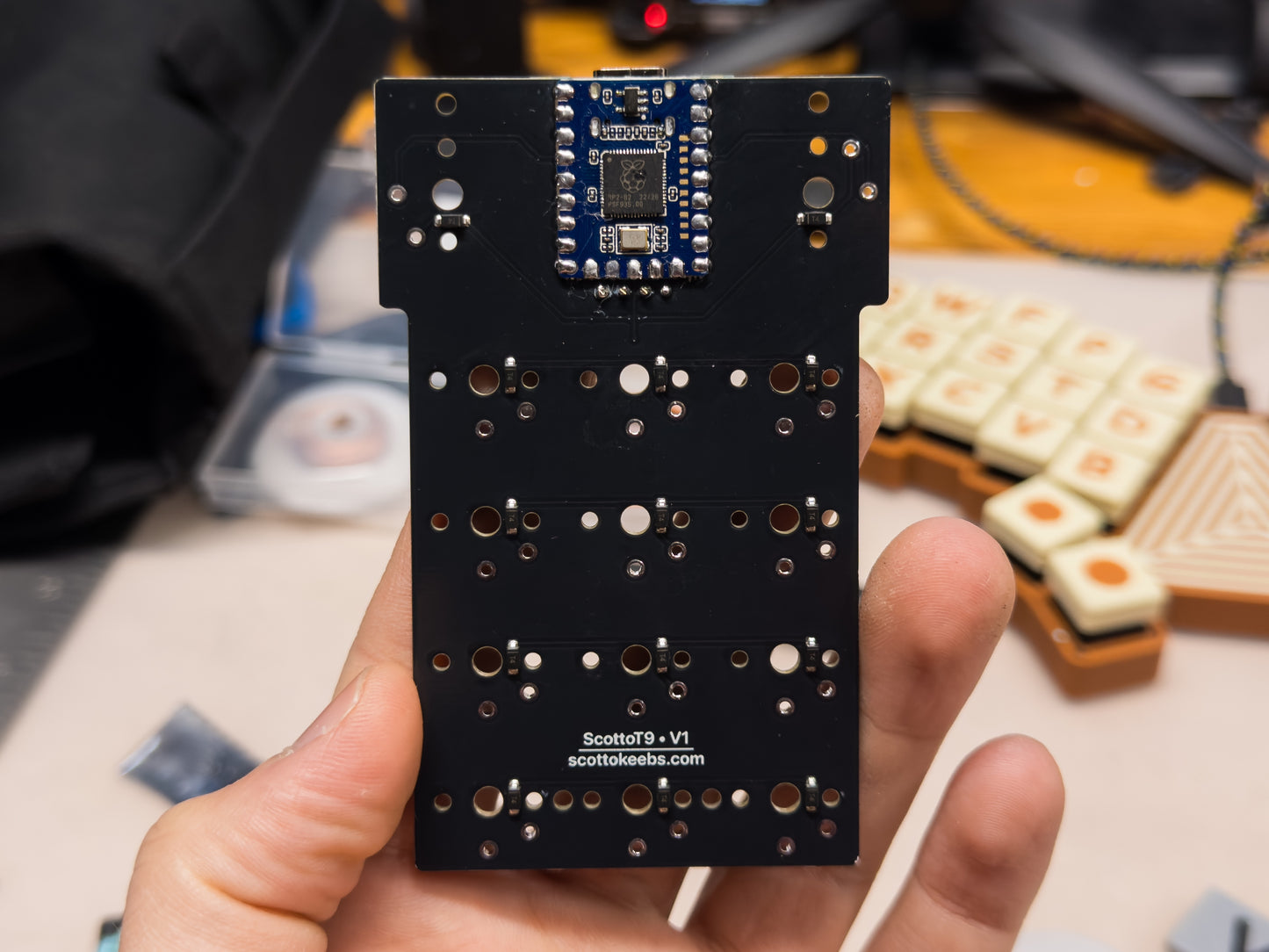

ScottoT9 PCB Kit

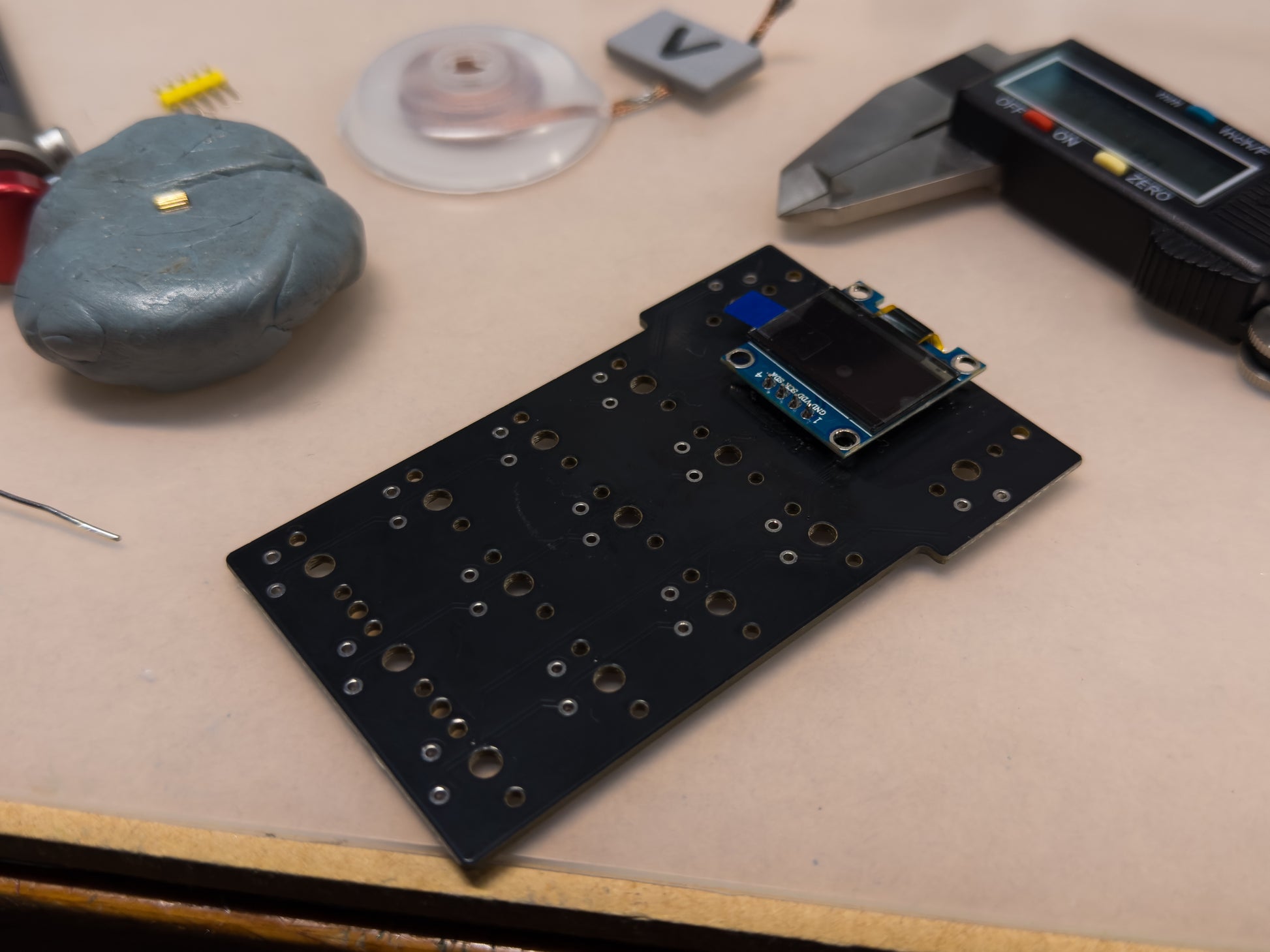

This is a PCB kit for the ScottoT9 (PCB Edition) which is a 14-key macropad based on the T9 keyboard layout with a 128x64 OLED display. It's powered by a single RP2040 Zero and supports Vial for GUI customization.

The kit includes the following:

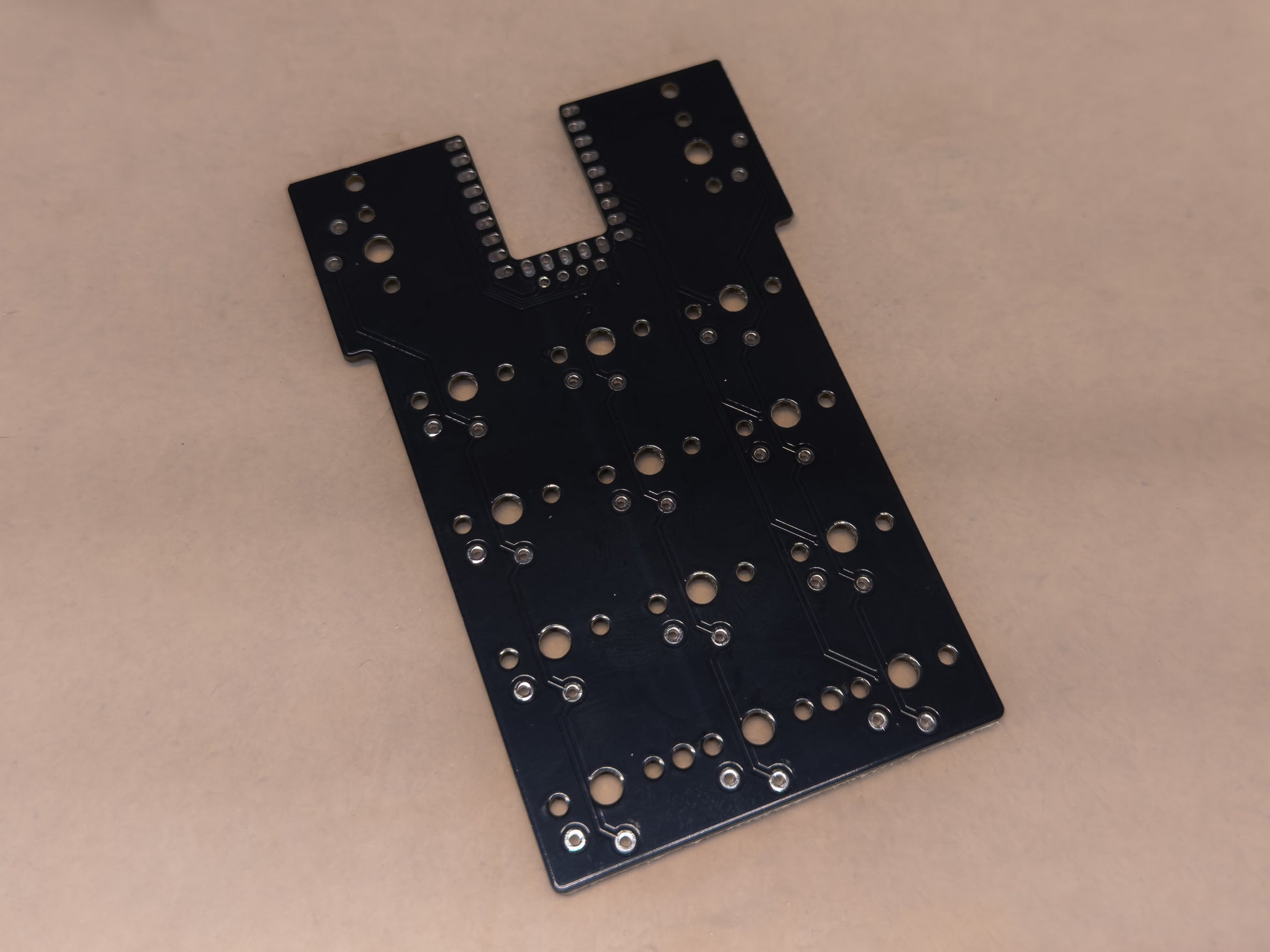

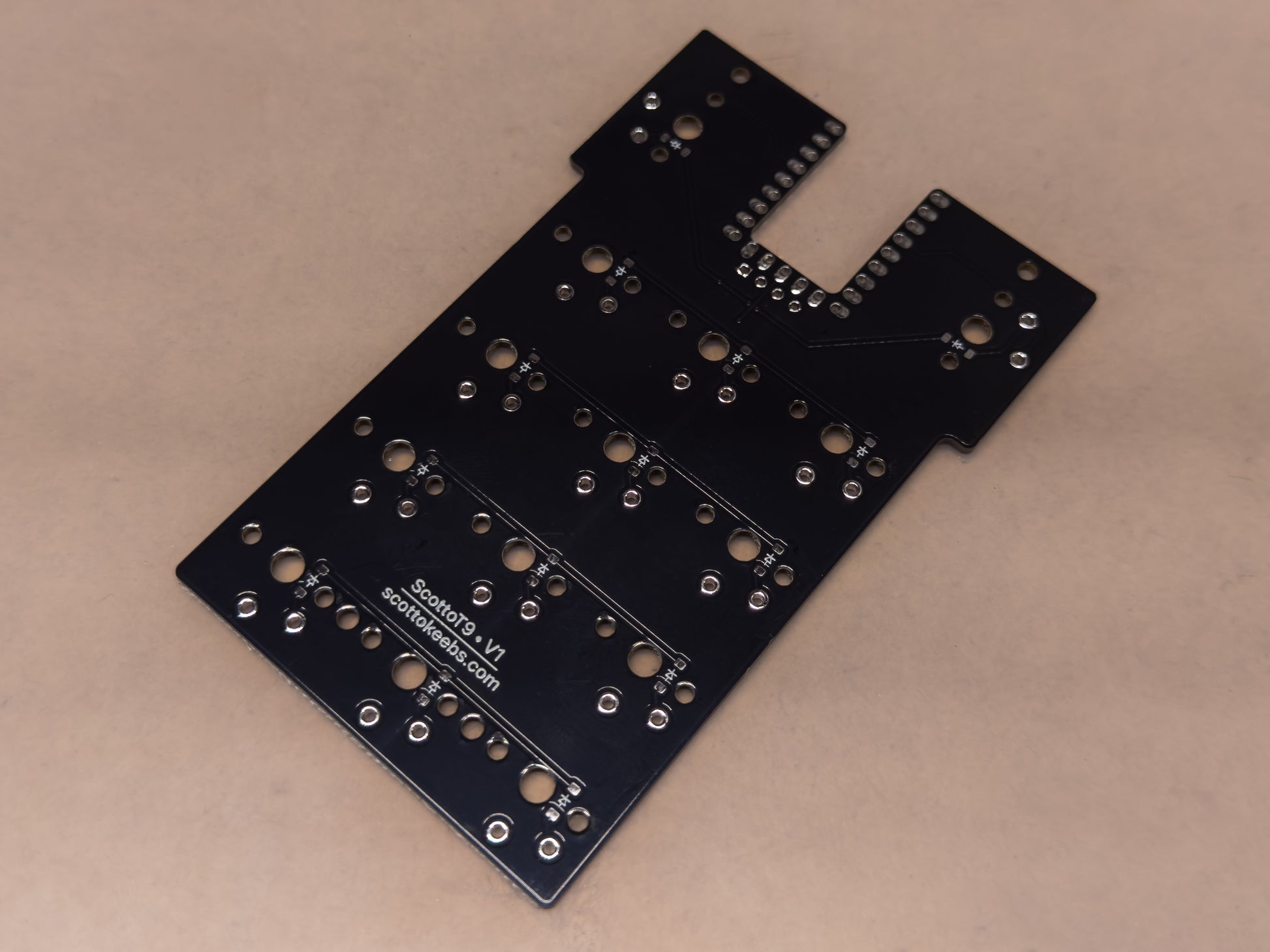

• ScottoFrog PCB
• 14 1N4148W SOD-123 Diodes
• Plexiglass OLED Cover

You will need the following to complete the build:

• 1 128x64 OLED
• 1 RP2040 Zero
• 1 3D printed case

• 1 ScottoT9 Keycaps Set (optional)
• 14 Choc switches
• 12 1u keycaps
• 2 1.5u keycaps

You can find the case files here.

Firmware

You can find the firmware files here.
