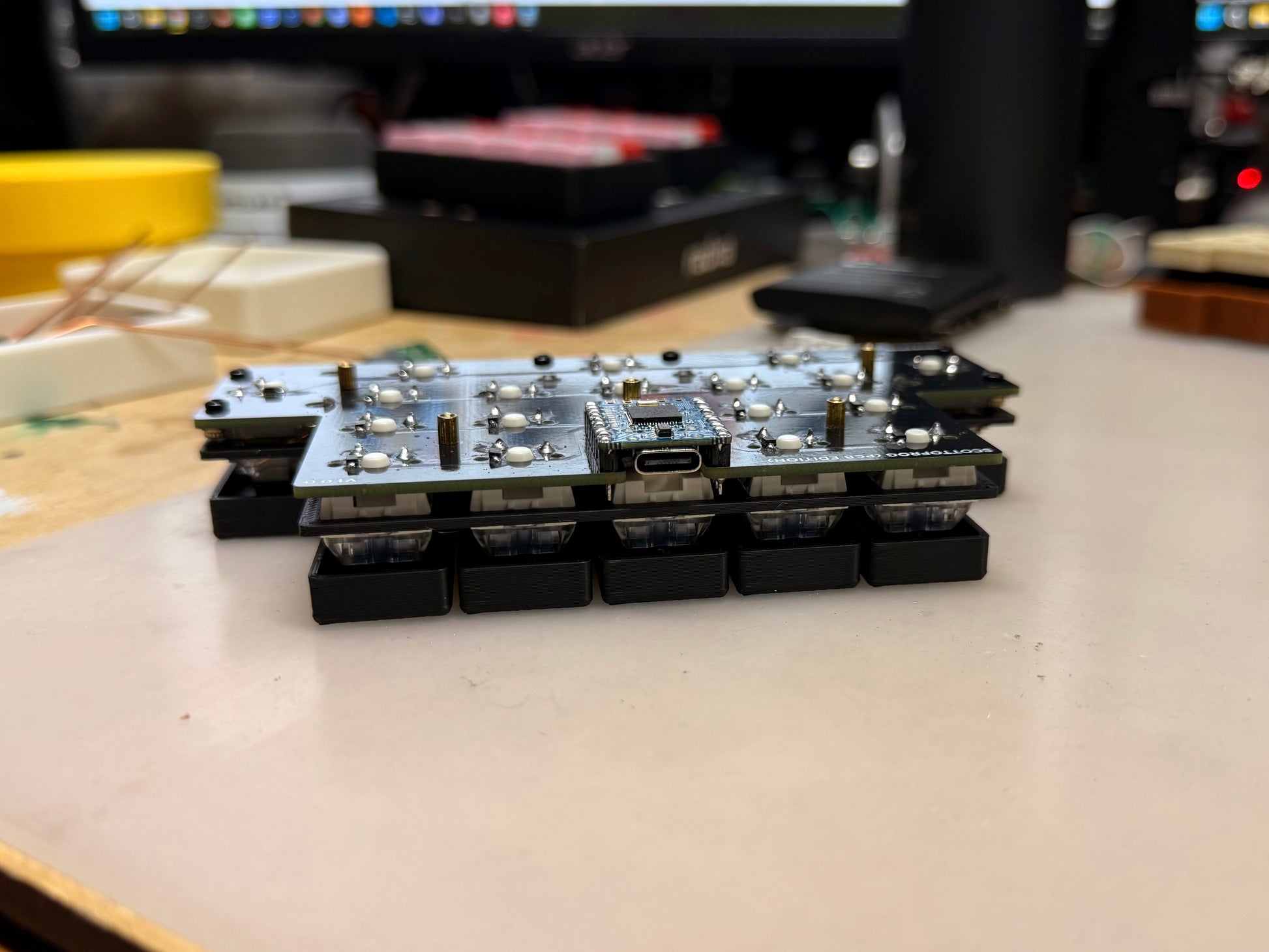

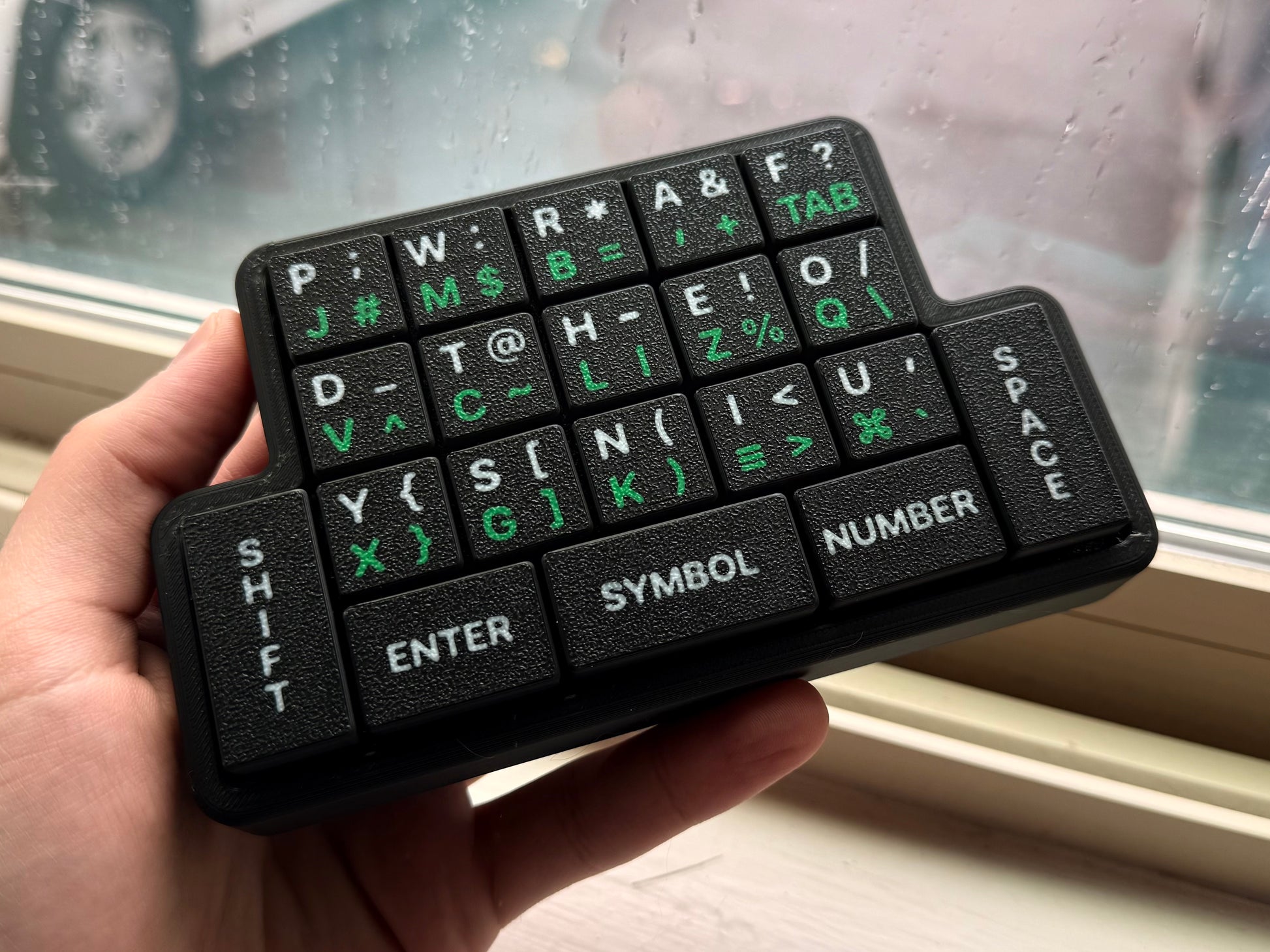

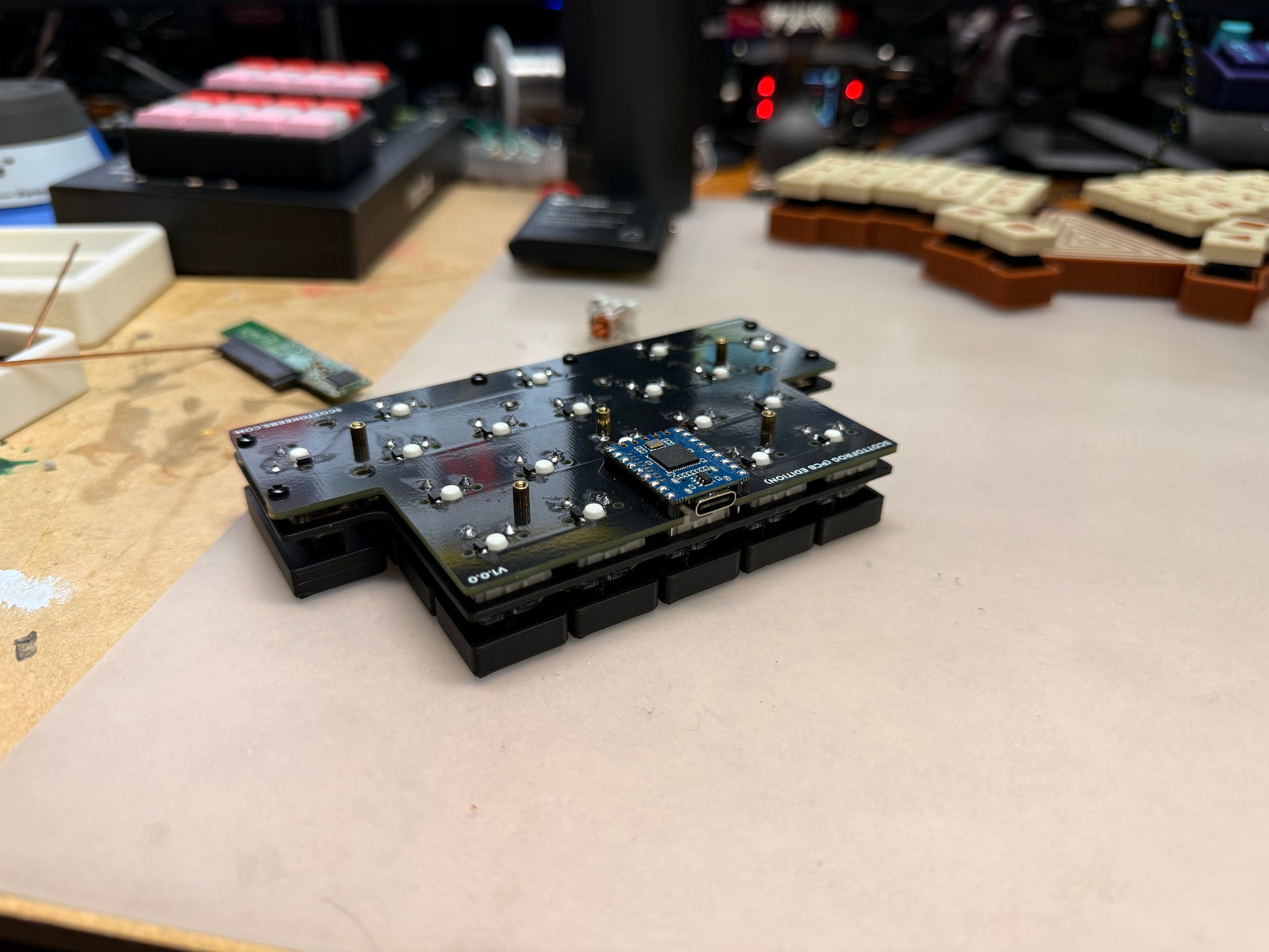

ScottoFrog PCB Kit

This is a PCB kit for the ScottoFrog (PCB Edition) which is a 20-key single handed keyboard or macropad depending on which firmware you choose to run. It's powered by a single RP2040 Zero and supports Vial for GUI customization.

The kit includes the following:

• ScottoFrog PCB
• Pre-cut pin-socket headers
• 20 1N4148W SOD-123 Diodes


You will need the following to complete the build:

• 1 RP2040 Zero
• 1 3D printed case
• 3 2u screw-in stabilizers
• 1 ScottoFrog Keycaps Set (optional)
• 20 MX switches
• 15 1u keycaps
• 3 2u keycaps
• 2 1.25u keycaps

You can find the case files here.

Firmware

You can find the firmware files here.
